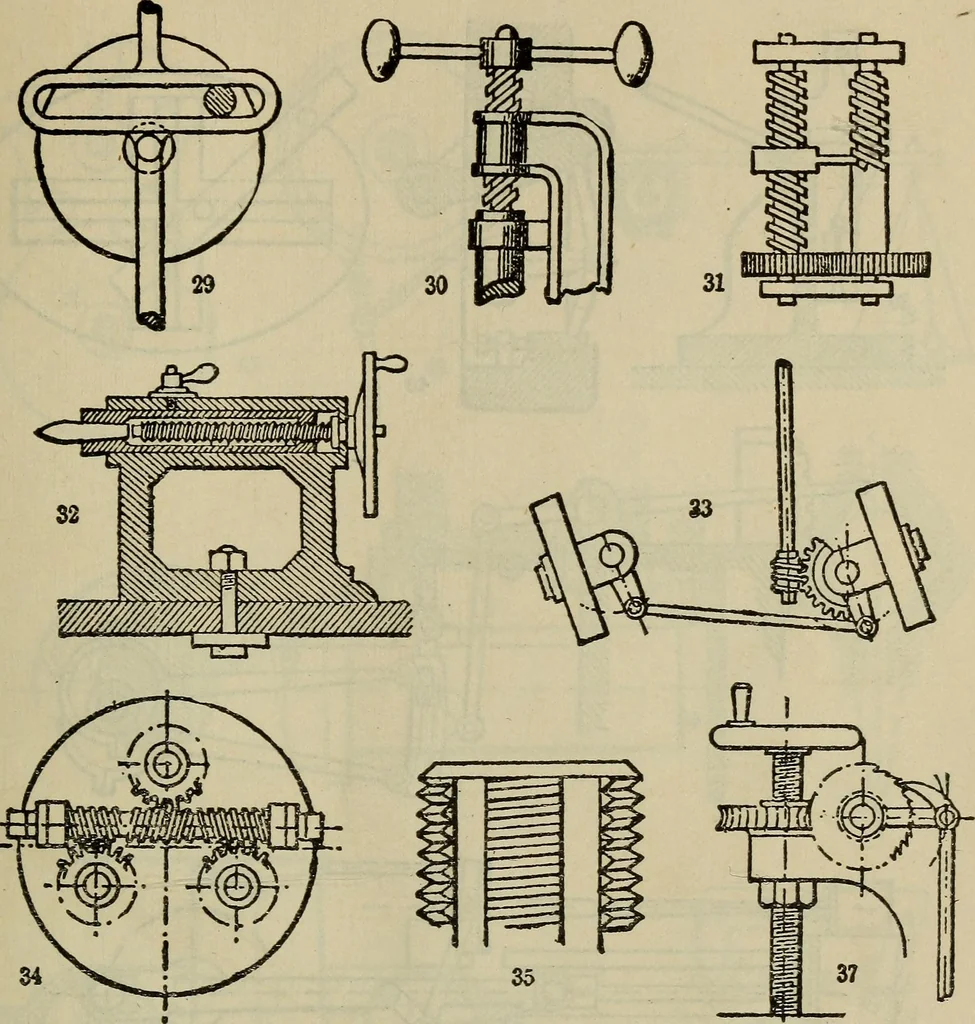

A heart-cam, by whose rotation uniform tra-versing motion is imparted to the vertical bar.The dotted lines show the method of obtainingthe curve of the cam. Eight concentric circles aredrawn with radii in arithmetical progression asshown, and they are divided into twelve equalsectors. The points on… … 29. A crank motion, with the crank-wrist work-ing in a slotted yoke, thereby dispensing with theoscillating connecting-rod. 30. A screw stamping-press, showing how recti-linear motion may be obtained from circularmotion by means of a screw. 31. A screw-cutting mechanism The rotationof the left-hand…
