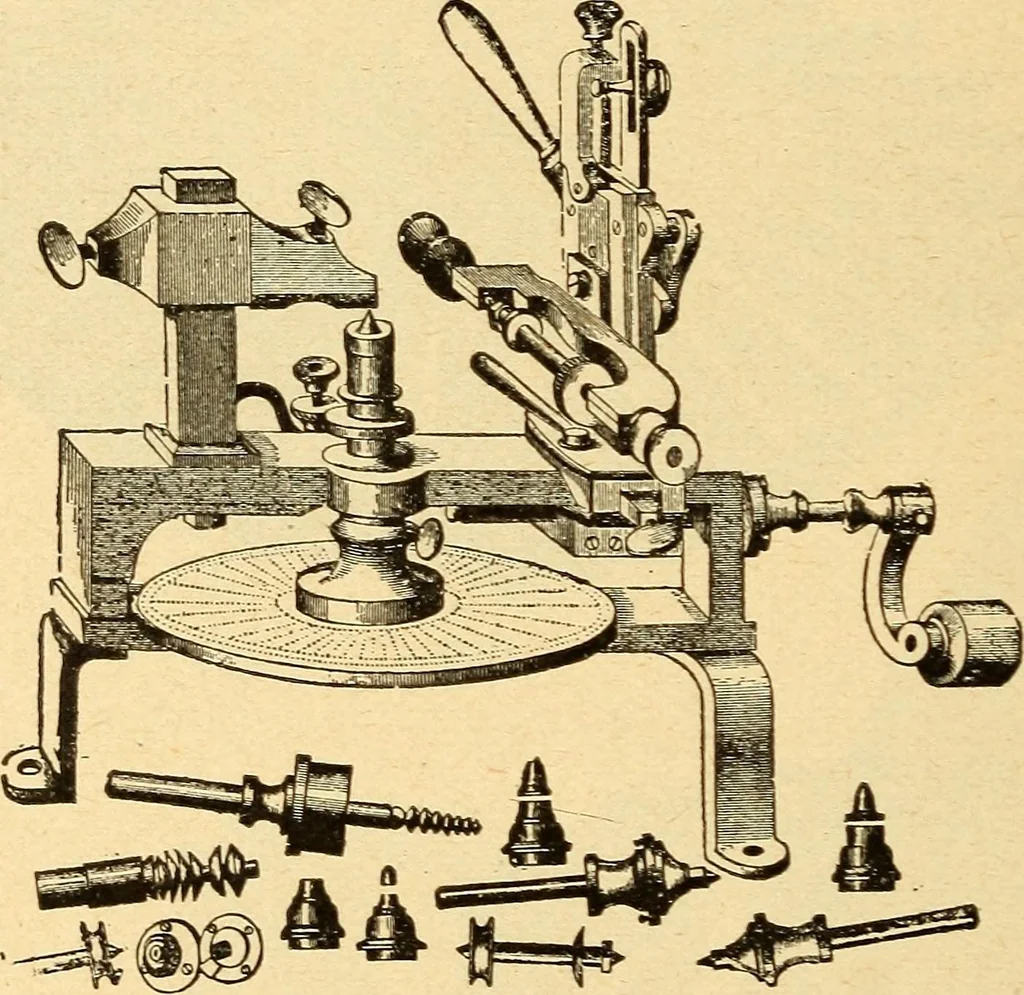

180 191 Fio-s 186 to 191. Enlarged views of milling cutters for use on wheelcutter making tools shown in Figs. 100 to 191; cutting ratchet wheelsand other purposes. CHAPTER XIII. WHEEL CUTTING ATTACHMENTS FOR THE WATCHMAKER. We now come to the machinery with which these cuttersare used. The… … Fig. 192. The original wheel cutting engine. of the index spindle by a clamp carried on a square uprightpost and the cutters were adjusted and fed by moving theslides at the right of the machine. The best thing aboutthis machine was the large index plate. The sliding car-riage was too light in all…
