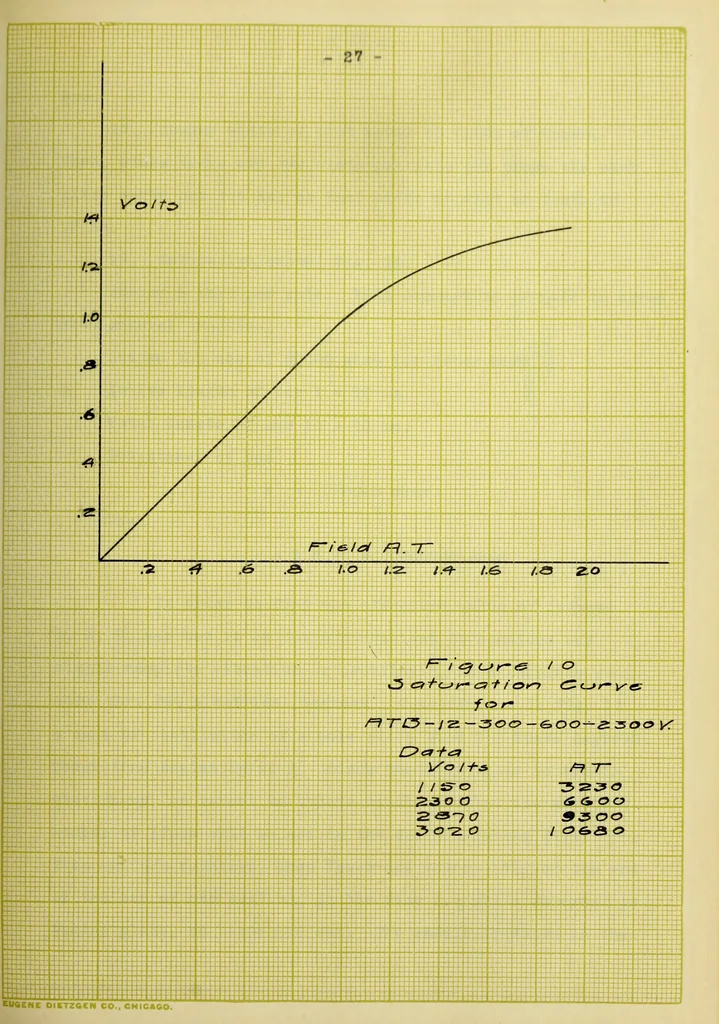

300 volts) - 60000 lines persquare inch. 11. Synchronous reactance A. T. - 2400. 12. Armature reaction A. T. - 1910. 13. Armature resistance - 2%. 14. By use of relations Arm. React. =1.5 ~|/1T I t and E - 4.44 <L t f . 10° the total number of lines per pole is found to be 4.16 • 106 15. With a… … - 28 - arc. 17. Assume width of slot equal to width of tooth.Then, since there are two slots per pole per phase the slotpitoh works out 1.6 in. so that width of slot or tooth is.8 in. 18. Saturation curve, Pig. 10. Assume 6 bars per pole. This assumption is made to agreewith general practice.…
Electric machinery, Synchronous · Electric motors, Synchronous · Theses
