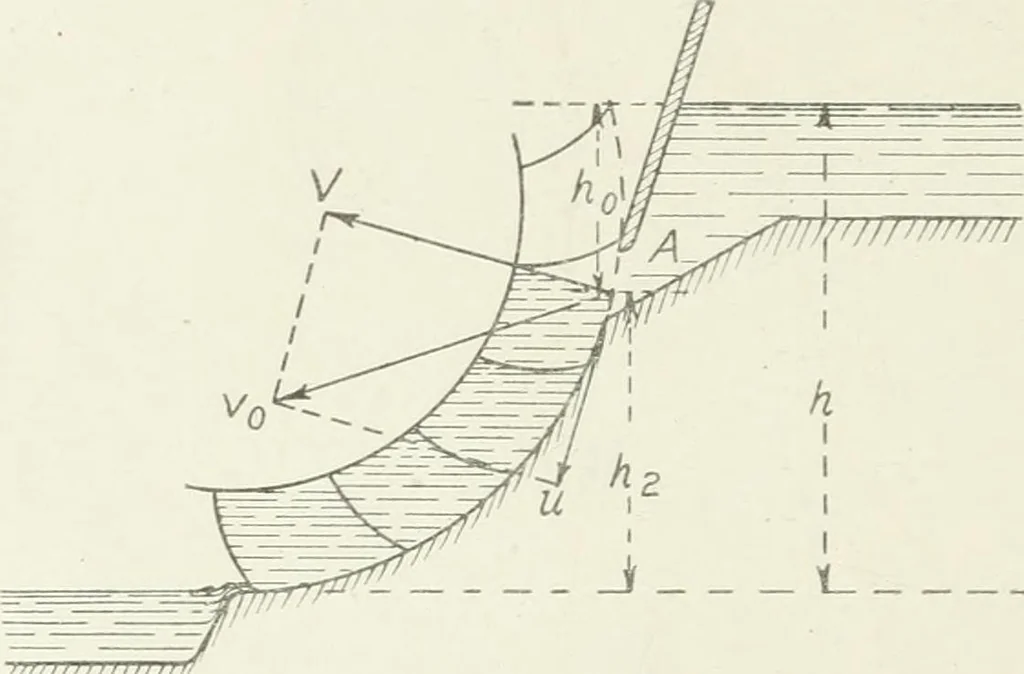

wheel would becomeimpracticable. It is clear that the water acts both by impulse andby weight; therefore, to prevent the escape of the water before thebuckets reach their lowest position, the lower quarter of the wheel isencased in a circular breast which encloses the buckets, thus prac-tically… … 777777777777^777 Fig. 30. Breast-Wheel with Supply Controlled throniib Sizeof Orifice. ply to the wheel through regulation of the size of the orifice.In Fig. 31 the control of the supply is accomplished by means of ashuttle-gate arrangement which consists of a number of openingsJ J in the inclined…
