Hydraulic engineering; a practical treatise on the principles of water pressure and flow and their application to the development of water power, including the calculation, design and construction of water wheels, turbines, and other details of hydraulic power plants (1909)

American School (Chicago, Ill.), Black, Adolph, Turneaure, Frederick Eugene, 1866- · Chicago American School of Correspondence · leaf 144

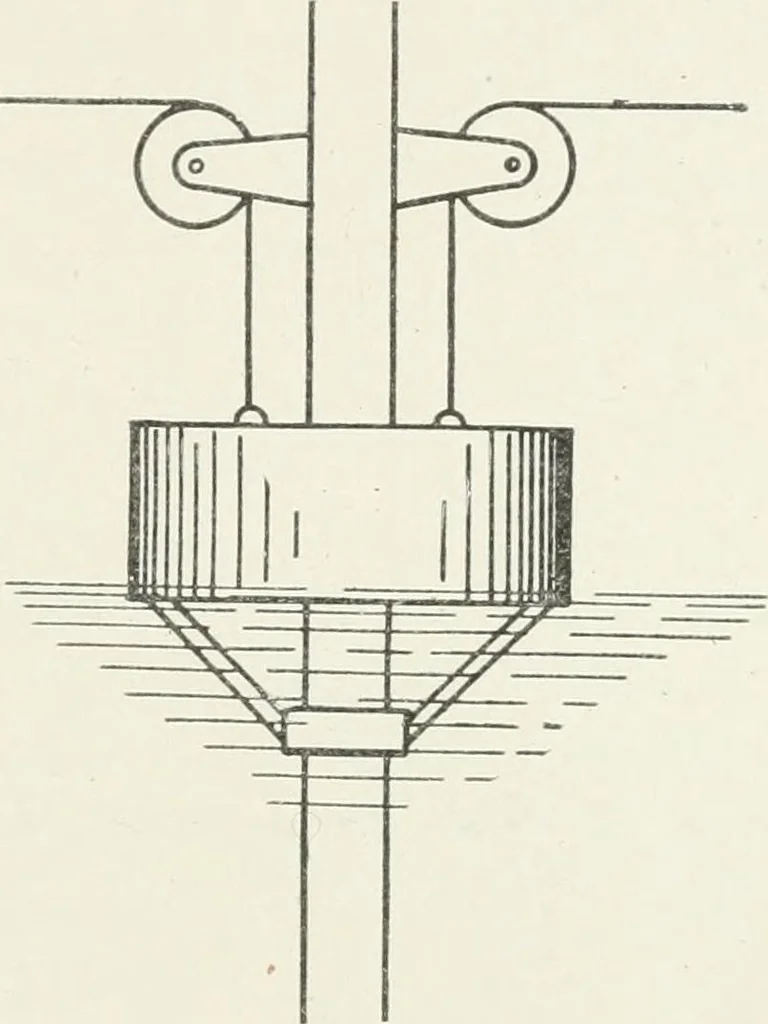

An illustration from Hydraulic engineering; a practical treatise on the principles of water pressure and flow and their application to the development of water power, including the calculation, design and construction of water wheels, turbines, and other details of hydraulic power plants, 1909, leaf 144
evertheless a true impulse wheel actuated by abroad stream of water; and also several other types of true impulsewheels. 7(). Horizontal Impulse Wheels. When a wheel operated by astream of water issuing from a nozzle and impinging on its vanes isso placed that its plane of rotation is horizontal… … Fig. 39. Device for Utilizing Power of WaveMotion. 60 WA71^I{-P()AVER DEVELOr.MEXT graininatically in Figs. 25 and 20. In order to deduce the conditionsor relations for maximum efficiency, consider Fig. 20, in which bothtypes are represented, so that the following analysis and the…
