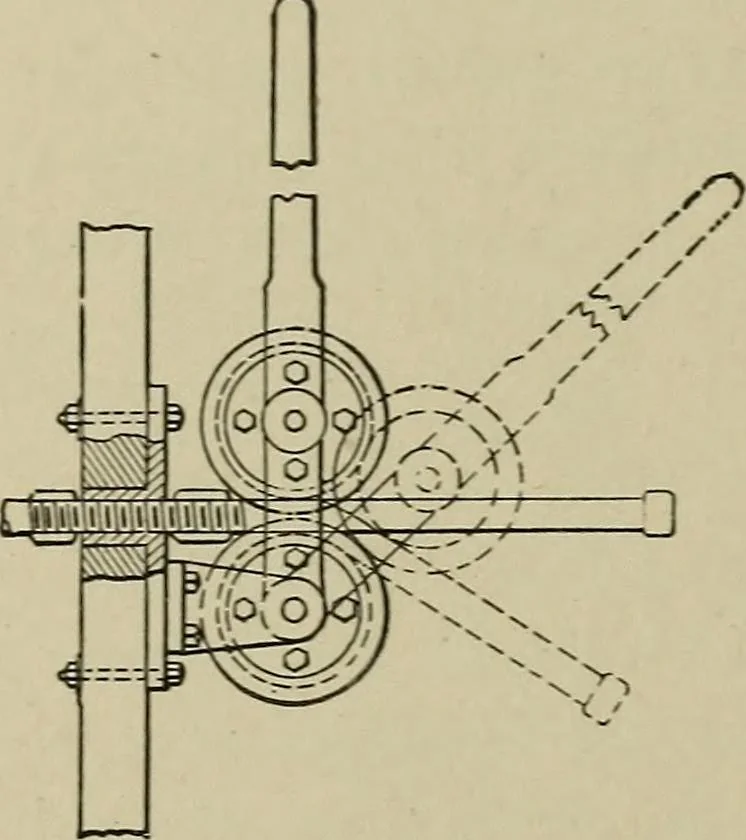

766. ANGLE IRON BEND-ING MACHINE. The lever, with adjustable jaws and slidinggauge, swings on a pivot and bearsagainst a block. A set piececlamped upon the sector limits thebending angle. 294 MILL AND FACTORY APPLIANCES AND TOOLS, ETC. … 767. PIPE-BENDING MACHINE. The machine consists of apipe holder, which securely clamps the fixed end of the pipe, and a bend-ing lever operated by hand for giving thepipe the proper form. The lever is pro-vided with two grooved wheels pivoted sothat the flanges just clear, thus leaving anopening…
