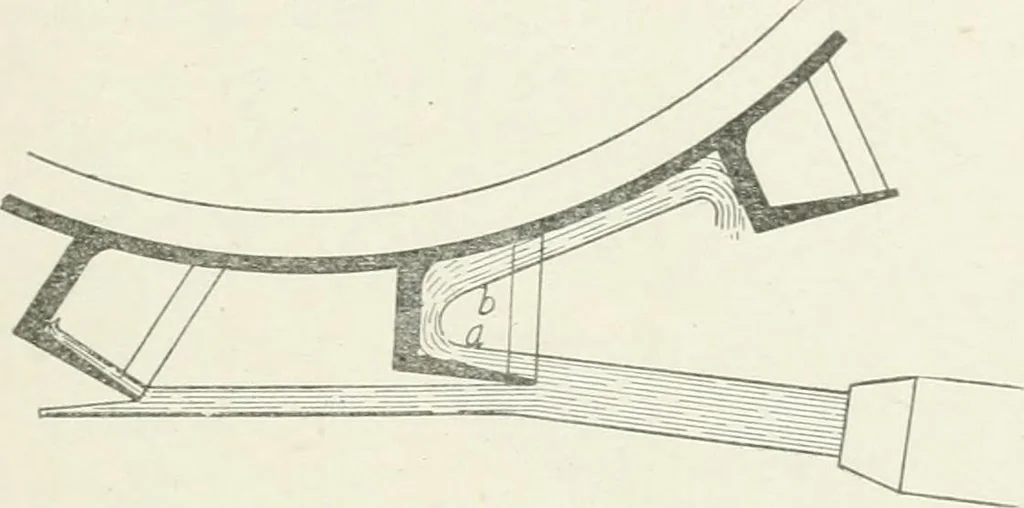

= 2a Using this value of cf) in Equation 48, there results: 2 cos a (79) Equations 78 and 79 state the conditions involved in Equations48 and 77, for maximum hydraulic efficiency, in terms sometimesmore convenient for use. When a wheel constructed according to this WATER-POWER DEVEL0P:\IEXT 61… … Fig. 40. Faulty Design of Vane. 77. An analysis of this formula teaches that, for high efficiency,both the approach angle a and the exit angle ^ should be small; but they cannot be zero,otherwise waterwould not pa.ss intoand out of thewheel. Values of15 to 30 degrees arecommon. Since, forsmall…
