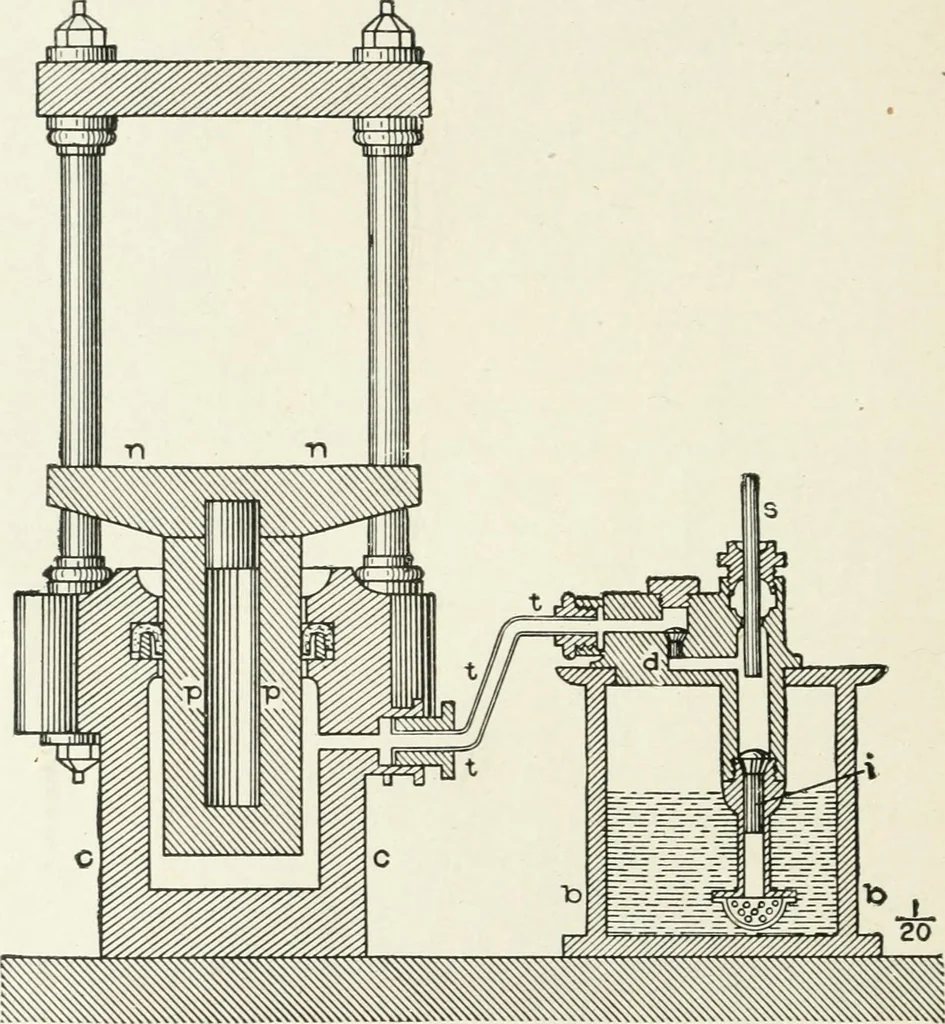

his pressure will betransmitted equally to the larger vessel where the water will exertthe same pressure per square inch upon the vessel and upon anypiston W which may be inserted in any opening of the vessel CBy making the area of P small and of W large a small load P willbalance a large load W.… … iiT Fig. 3. hence the weight W which will be sustained will be equal to the Parea A multiplied by the pressure per square inch, —. or W= A (I) The principle above stated is utilized in the hydraulic pressshown in Fig. 3. In this ap])aratus a pump on the right with HYDRAULICS small plunger feeds a…
