Hydraulic engineering; a practical treatise on the principles of water pressure and flow and their application to the development of water power, including the calculation, design and construction of water wheels, turbines, and other details of hydraulic power plants (1909)

American School (Chicago, Ill.), Black, Adolph, Turneaure, Frederick Eugene, 1866- · Chicago American School of Correspondence · leaf 175

An illustration from Hydraulic engineering; a practical treatise on the principles of water pressure and flow and their application to the development of water power, including the calculation, design and construction of water wheels, turbines, and other details of hydraulic power plants, 1909, leaf 175

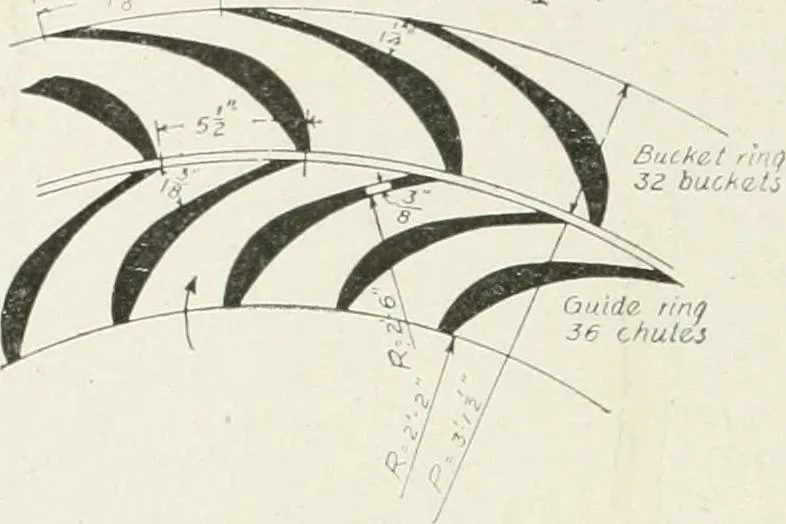

05. Diagram of Tj-pical Turbine. 86 WATER-POWER DEVELOPMENT and rcactio7i turbines. ^^If the wheel-passages are not completelyfilled widi water, and if air enters Jreely so that the entire streamwidiin each wheel-passage is under atmospheric pressure, the … Fig. Ofi. Section of Guides and Tiuckets,FournLyrou Turbine, Niagara Palls.
