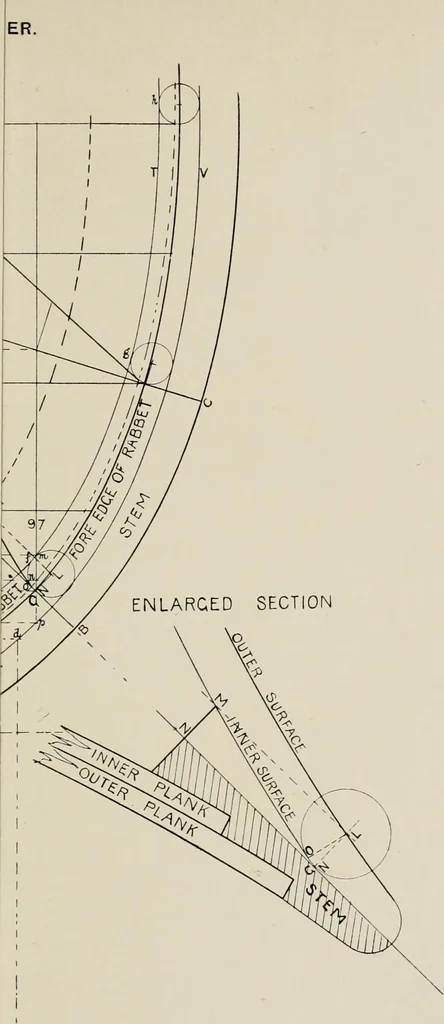

cutting the base line of theSheer at the point d. Project the point d upon the middle line ofthe Half Breadth at d\ from which draw the perpendicular dlg,making d1 g = to/1//1 iu the Body. Then // is the horizontal traceof the tangent to the fore end of rabbet at b. Through b\ the foreedge of the…
