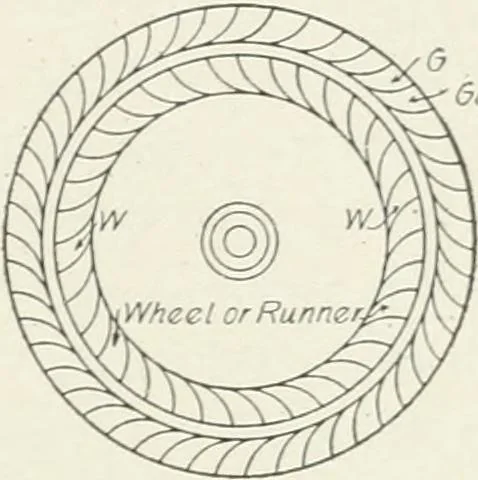

6adzi Fi. TO. Francis Turbine. Radial inward flow. i.s frequently called theFourneyron turbine (Fig.69). The guide.s G arerigidlv attached to thefixed plate P, which i.sconnected with the hol-low pipe enclosing theshaft. In .such a wheelthe discharge may beeither into the air or intoa body of…
