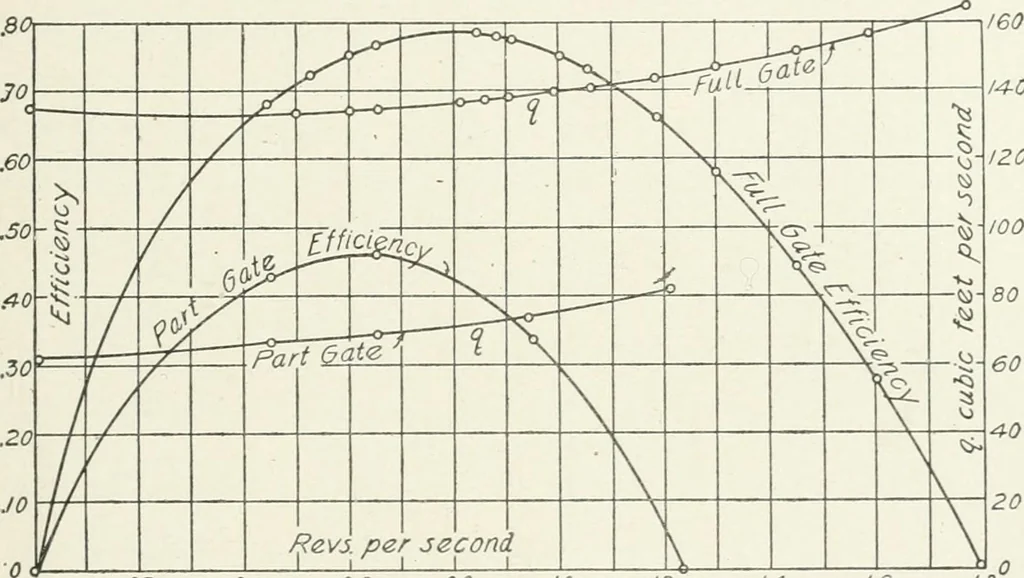

er second (q) is somewhat different at different speeds(at full gate), the speed of maximum power differs slightly from thatof maximum efficiency. 129. In the five part-gate experiments, Nos. 16 to 20, thegate remains fixed mi a definite position (about one-quarter raised,although the discharge is… … 0.2 Fia Oft- 0.6 o.e /.O /.2 /.4 /.6 . Curves Showing Results of Test of Tremont Turbine. zero; but q = 60.3 cubic feet per second. As the turbine is permittedto revolve under progressively diminishing friction, the speed of steadymotion becomes greater, reaching its maximum (1.25 revolutions…
