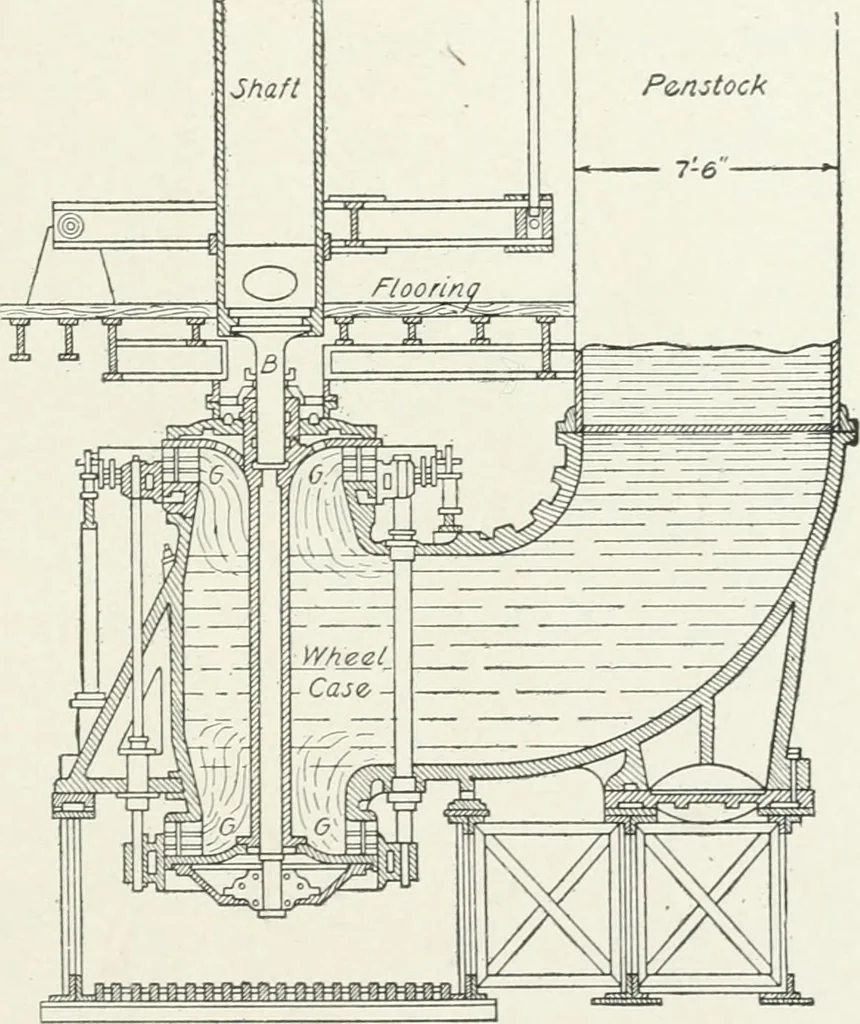

sare in motion, bythe upward pres-sure of the water inthe wheel-case ona balancing pistonor disc B, placed above the upper wheel and rigidly attached to theshaft. The upper disc containing the guides is perforated so that thewater pressure existing in the penstock can be transmitted directlythrough… … Fig. 84. Thrust Piston with Twin-Flow Wheels Mounted onSame Shaft. Niagara Falls Powt-r Co., Power-House No. 1. 128 WATER-POWEIl DEVELOPMENT —— ^ to the wheel-case, which, together with the penstock, is supportedupon several girders. At the upper end of the shaft is a specialthrust-bearing designed…
