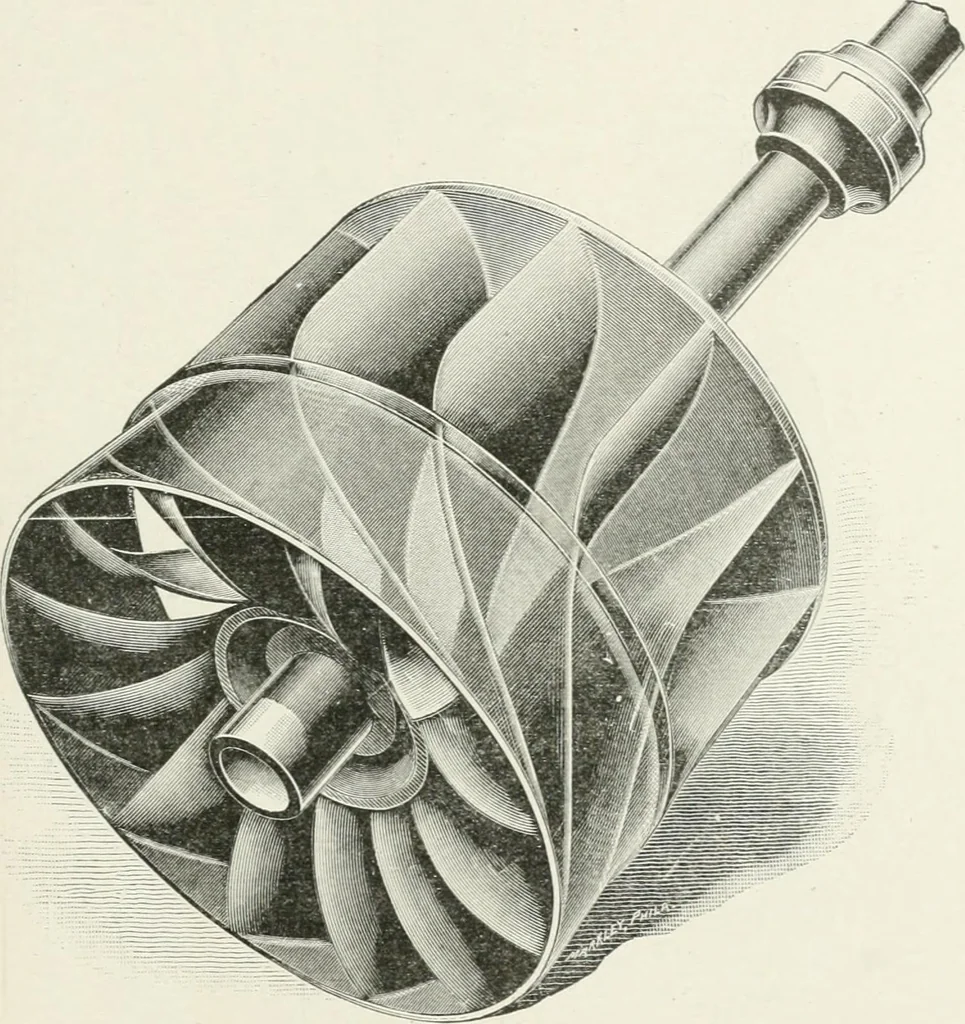

Fig. 99. Risdon-Alcott Double-Capacity WTieel. WATER-PO^^^R DEVELOPJVIENT 143 Risdon-Alcott Turbine Company, and therefore need not be furtherillustrated. Fig. 105 represents a vertical-.shaft turl)ino with wicket-gate,built bv the S. Morran Smith Co., of York, Pa.; it is shown set in a … Fig. 100. Alcott Special Runner. Eisdon-Alcott Turbine Co. steel turbine-chamber. Fig. 106 is an outside view of a turbine case,etc., from the same manufacturers, showing the cylinder regulatinggate fully raised; the mechanism for operating the gate is clearly seen. Figs. 107 to 110 show some of…
