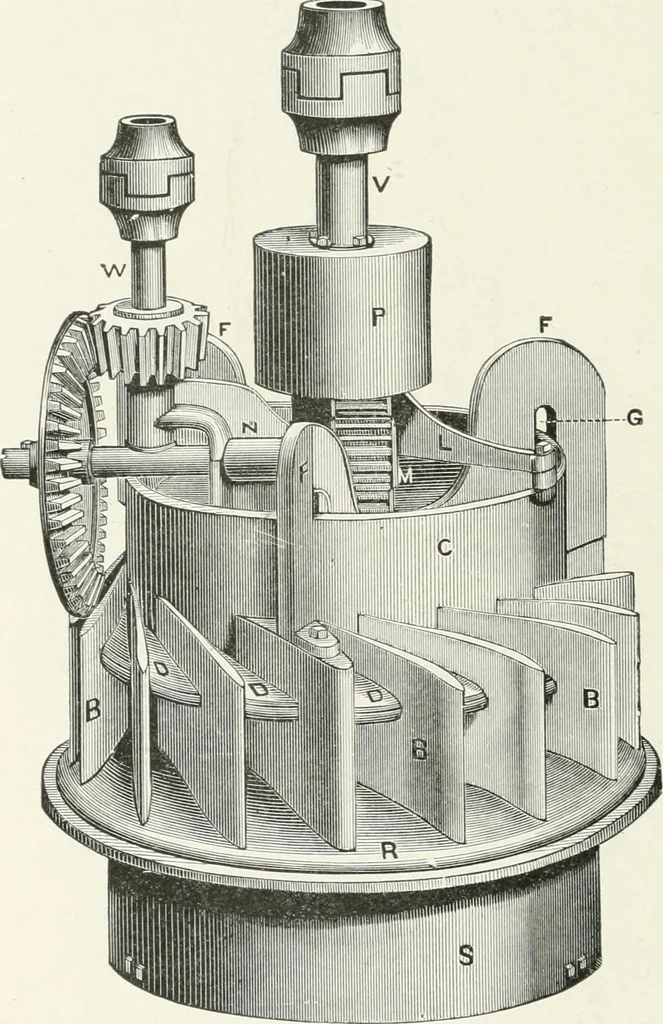

the gate is clearly seen. Figs. 107 to 110 show some of the usual methods of installingturbines. Besides those already mentioned, there are several well-knownAmerican manufacturers of turbines and acccs.sories—such as tlicDayton Clobe Iron Works Company, Dayton, Ohio; the Ilolyokc 144 WATER-POAVER… … Fig. 101. Risdon Cylinder-Gate Turbine. Ilisdon-Alcott Turbine Co. Fif. 116 represents one form of safety relief-valve designed tooperate at a pressure slightly greater than the normal; in the event ofthe water-flow being suddenly checked by the closing of the gate or bythe operation of the…
