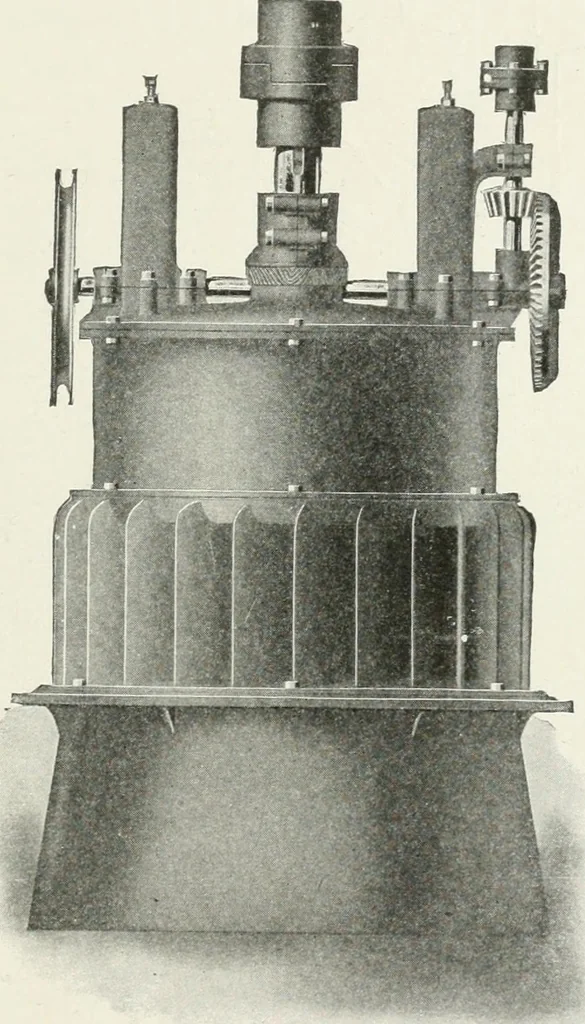

e. 168. Gauges. In order to be able to obtain, without inconven-ience, certain information relative to the operation of a water-powerinstallation, gauges slioidd be set up at various points of the works— WATER-POWER DEVELOPMENT 149 for example, a pressure-gauge, to indicate the pressure of the… … Fig. 106. Smith Turbine with Cylinder Regulating Gate Fully Raised.Courtesy of S. Morgan Smith Co., York, Pa. the head of die ca.se or die dome; and, where a thrust-chamber orthrust-piston is employed, a gauge showing the pressure in the cham-ber, or behind the ])iston. A gauge .should also l)e…
