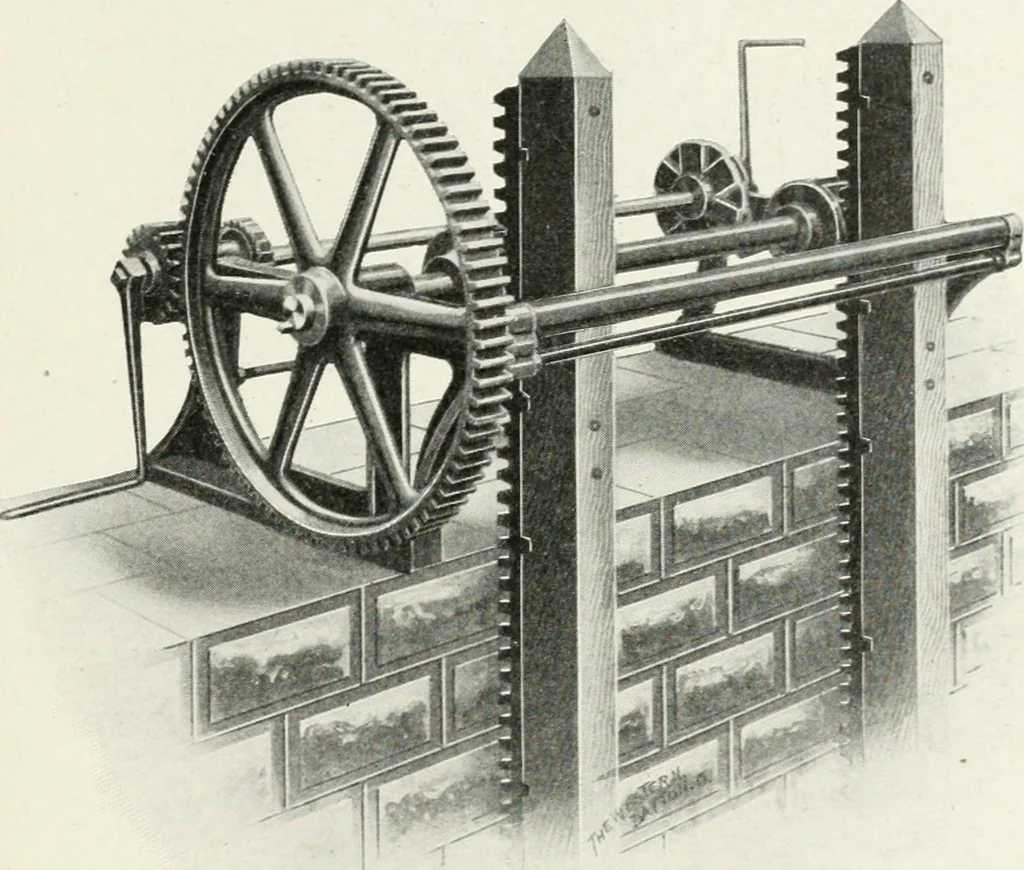

the pinion-shaft.Dayton Globe Iron ^yorks Co., Dayton, 0. WATER-POWER DEVELOP.MEXT 169 The tail-race should be designed to afford easy discharge of thewater, so as to prevent the possibility of backing up around the tur-bine or draft-tube. For this reason the walls of the tail-race shouldbe so… … Fig. 125. Cornpouud-Geared Head-Gate Hoist for Double-Stem Gate.Shafts carrying spur gears and pinions are substantially mounted on cast-iron stands;■wrought iron cranks are used for fperuiiiig ttie hoi^t. Hoist of similar pattern maybeused for a single-stem gate. Dayton Globe Iron Works Co.,…
