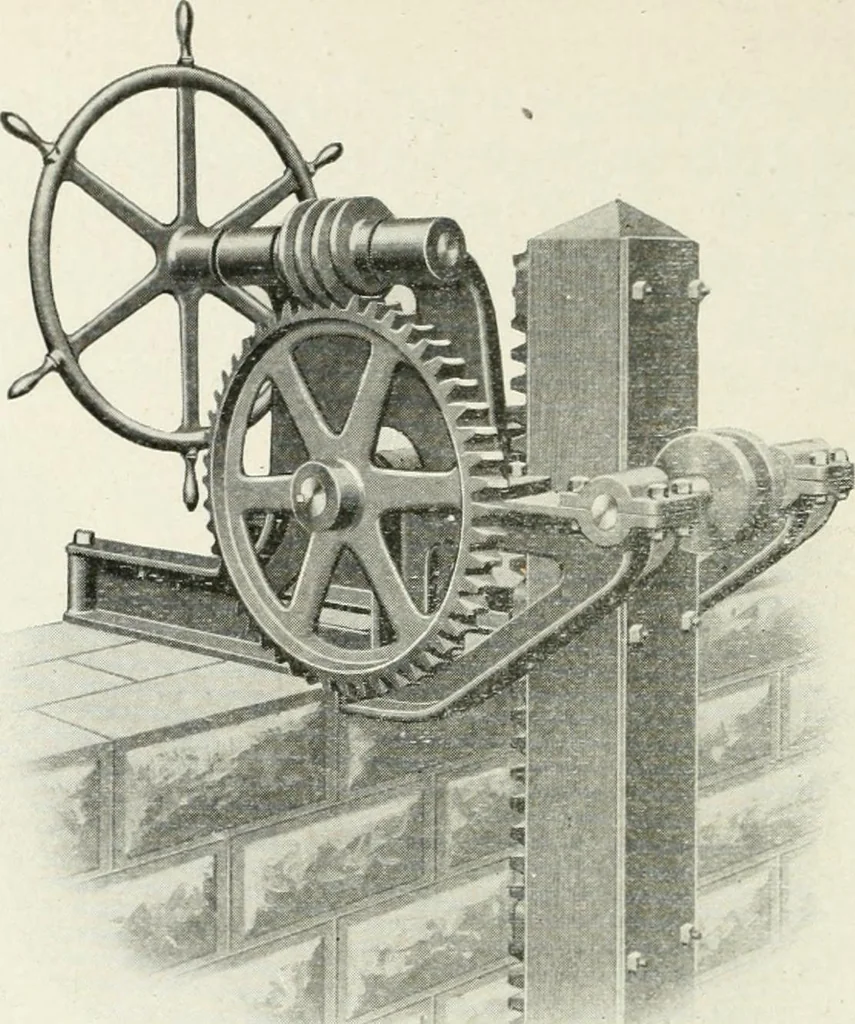

e same tail-race, they should be locatedon one side. Double draft-tubes may be placed, one on each side;when so arranged, the obstruction to the flow of water will be muchless than if they were placed in the center of the tail-race. 184. Water=Racks. These are screens through which the wateris… … Fig. 126. Singie-siem Head-Gate Hoist.With pilot wheel and worm-wheel operation. Dayton Globe Iron Worki Co., Dayton, 0.
