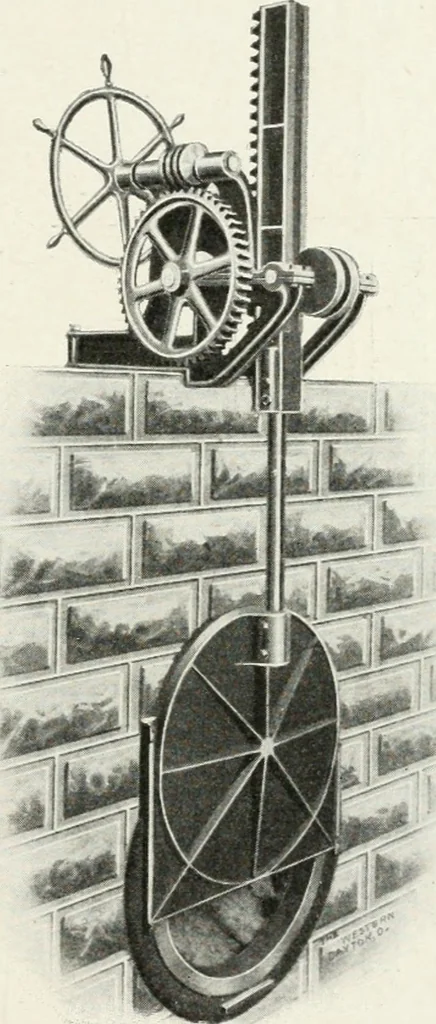

e, builtup of plate and structuralsteel, and so pivoted that itis practically balanced, is shown in Fig. b33; it is also shown in posi-tion in the power house, Fig. 80. Another form of head-gate which has not come into general use,though possessing many positive advantages, consists of a… … Fig. 131. Head-Gate and Hoist.Circular, cast-iron gate.Dayton Globe Iron Works Co., Dayton, 0. 174 WATER-POWER DEVELOPMENT
