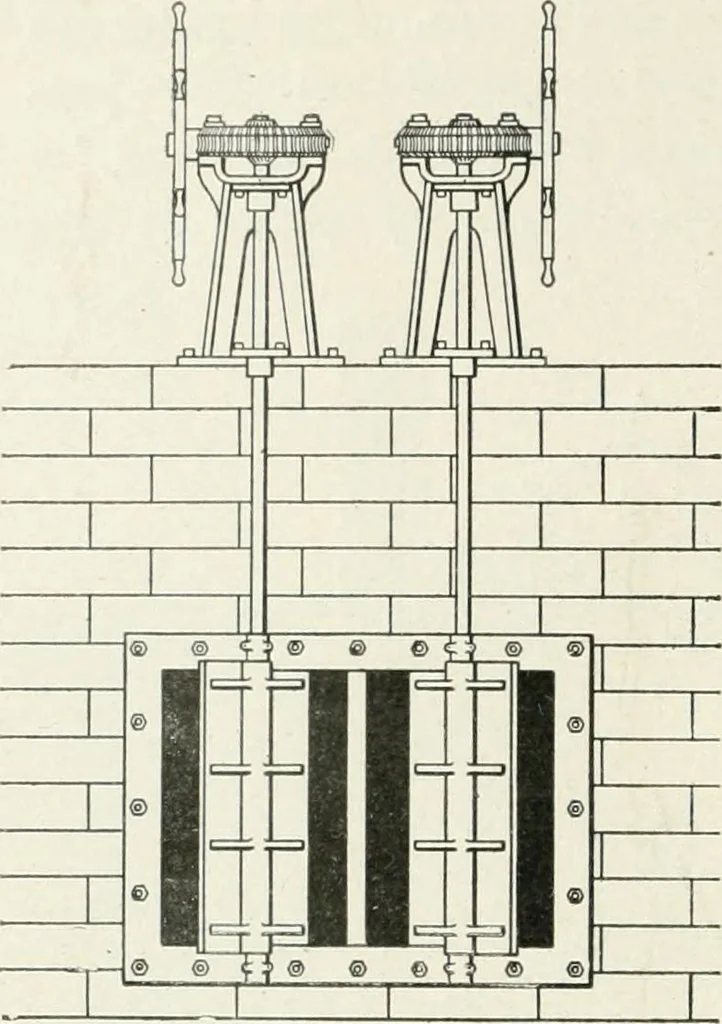

Fig. 131. Head-Gate and Hoist.Circular, cast-iron gate.Dayton Globe Iron Works Co., Dayton, 0. 174 WATER-POWER DEVELOPMENT … Fig. 133. Worm-Geared Swing Gate. to the lower ring, as in Fig. 134.The cylinder itself is raised orlowered by means of a chain. Inthe center of the dome is a smallfilling-gate operated by a separatechain. It is thus practically bal-anced, and hence requires but lit-tle power in operation;…
