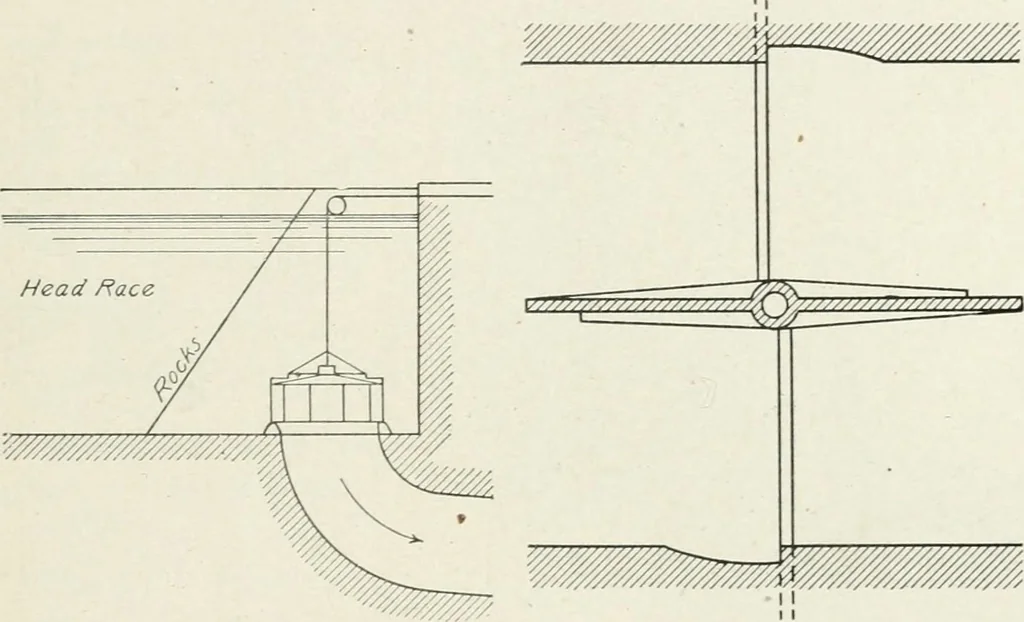

nal or other source of supply, to the tur-bine-chamber. When the source of supply is near the motor, it is arelatively unimportantdetail of the system. On the other hand, itsometimes happens that this pipe is several miles long; in which caseit assumes a position of primary importance; in fact it… … Fig. 134. Cast-iron Cylindrical Double-Seated Head-Gate. Fig. 135. Wicket-Gate Turning on VerticalSpindle. be as short as possible, even when a shorter penstock involves a greaterexpenditure for excavation, etc. The shorter the penstock, the betterit is for the speed regulation of the turbines, and…
