Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 91

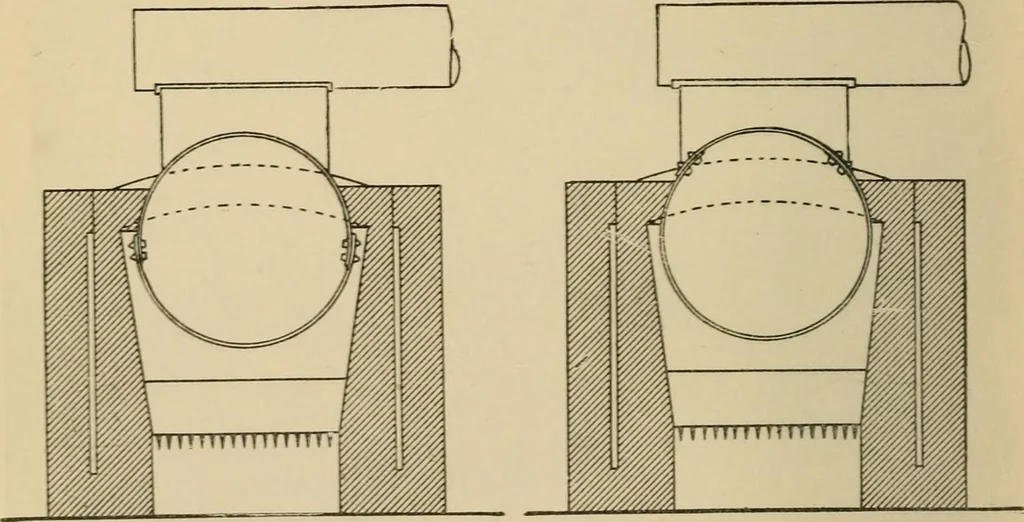

the ends. The joint so formed is made to come well up towardsthe top of the boiler, a little to the left of the top on one course, and a correspondingdistance to the right on the next course. It will be seen, that by building the boiler inthisway.it is easy to keep the •• fore-and-aft joints well… … Fig. 4.— Single Sheet Boiler. pIG. 5.—Three King Boiler. center of the boiler, on either side: and unless the furnace closes in against the boilerLower point than usual, we shall have the condition of things suggested in Fig. 4,where the fore-and-aft joints come within the furnace, and are liable…
Locomotives · Steam-boiler explosions
Internet Archive · Carnegie Library of Pittsburgh · Public Domain Mark 1.0. Free to use for anything.
