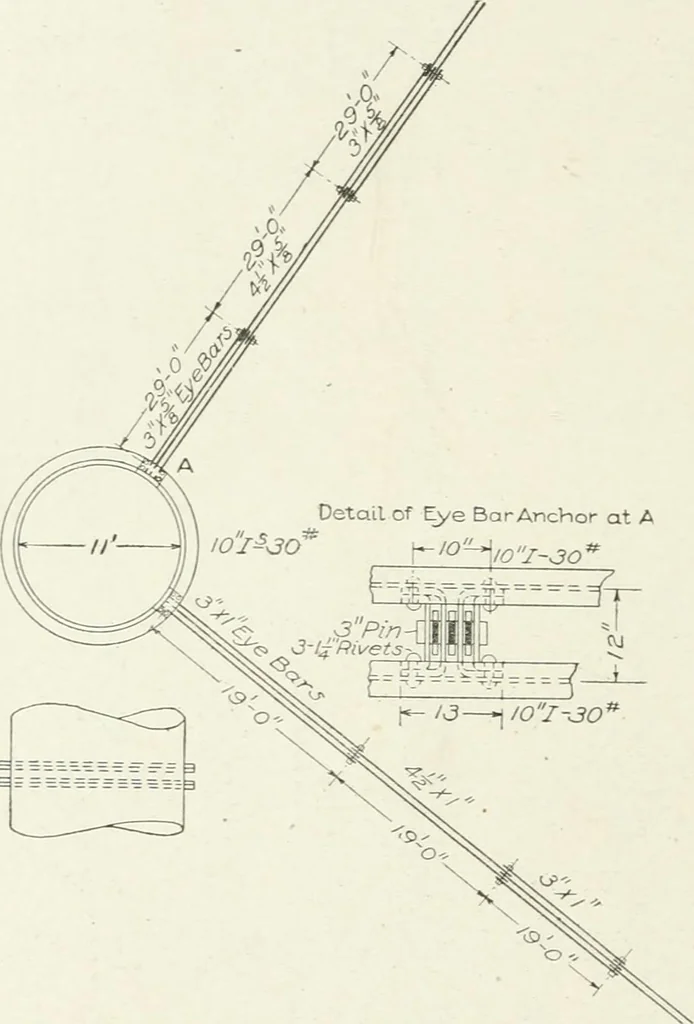

v-eted to it and tooutside reinforcement collars, which are S inches wide and 21 to Sc-inches thick. A cross-section near the end of the penstock shows theknee-brace supj)orts of the beaui ])latf()nn, the suspension rwls byVnIucIi the penstock is tied to the l)eams each side of the vertical… … FiK- 160. Auchor al Jop of Penstock. Plant of Niagara Fall.sHydratilic- Pawer & Maimfaeturiug Company. WATEU-POWEii DEVELOPMENT 207 The valve-gates are set horizontally, with their axes inclined4.) degrees to that of t;ie penstock, and are operateil liy pneumatic pressure. The interposition…
