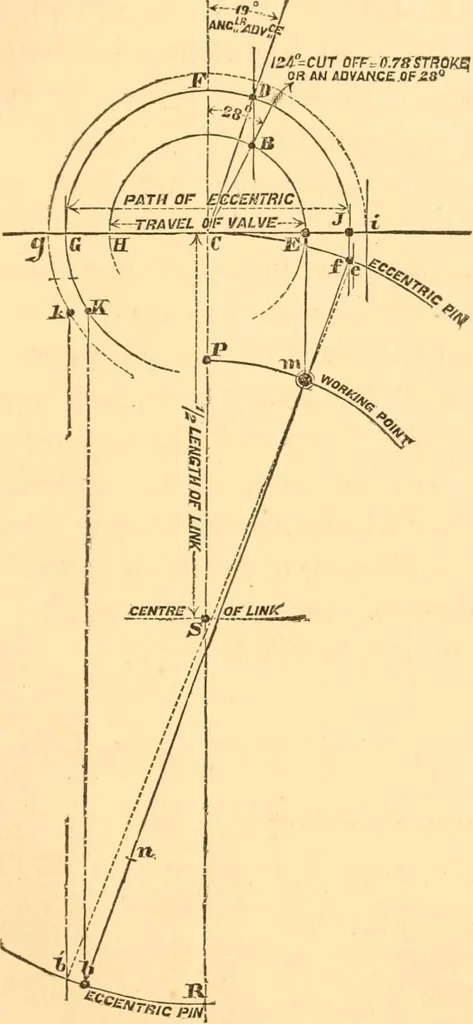

a diameter equal to the proposedtravel of the valve; from C lay off C P, the extreme dis-tance of the working point from the eccentric pin, also C Sthe | length of the link. With S as a centre describe thearcs C /, P m, and b R. Suppose now the cut-off musttake place at 0.78 of the stroke, then… … through the point of intersection B parallel to F R. Strikea trial eccentric circle ;FK about the centre C. Take thedistance between its two intersections D and F in a pair ofdividers and lay it off twice from G, giving the point K. 132 APPLICATION OF LINK NO. II. Through K draw a line parallel to…
