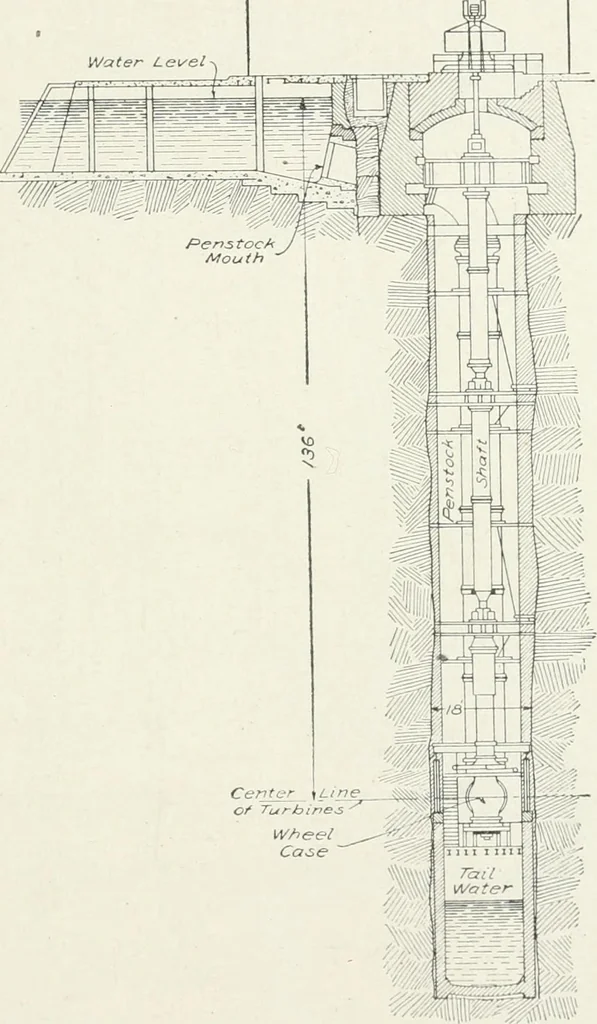

apoint somewhat overa mile above theFalls, to deliver theAvater to wheels in apit at the side of thecanal, and to con-duct the water fromthe wheels to the riverbelow the Fallsthrough a tunnel7,000 feet long,driv-en through tlie rockat a d istanceof nearly200 feet beneath thecity of Niagara Falls.… … Fig. 170. Transverse Section of Wheel-Pit. Power-HouseNo. 1, Niagara Falls Power Company. 210 AVATER-rC AVER DEVEL0P:MEXT portal of the tunnel is about 1,100 feet below the American Fall, at themean elevation of 343.4 feet. This makes a gross head of 217.8 feet.The canal, which was excavated to…
