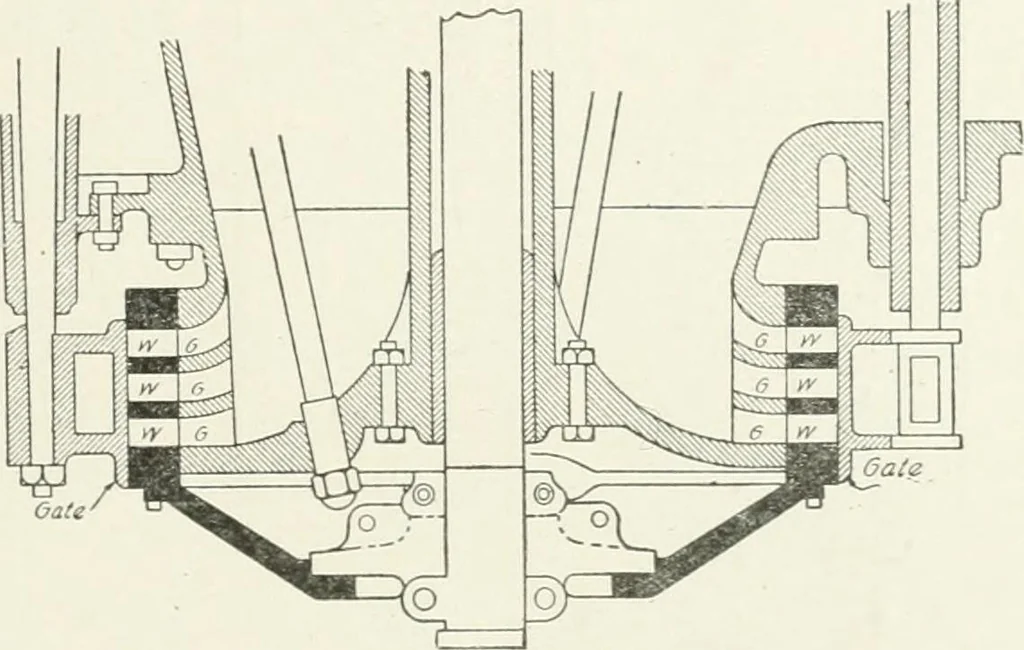

edgeof white sandstone. 199. The Turbines. The distinct difference in the turbinesof the two plants is that in the new plant the turbines are of the singleinward-flow or Francis type, while those of the old plant are of thetwin outward-flow or Fourneyron type, each wheel divided into threeparts by… … Fig. 176. Lower Part of 5,000-Hor.se-Power Turbine, Power-House No. 1, Niagara Falls Power Compauy. 220 WATER-POWER DEVELOPMENT tail-race. The new wheels were designed by Messrs. Escher, Wyss& Company, to give 5,500 horse-power each, under a head of 145 feetat a speed of 250 revolutions, this…
