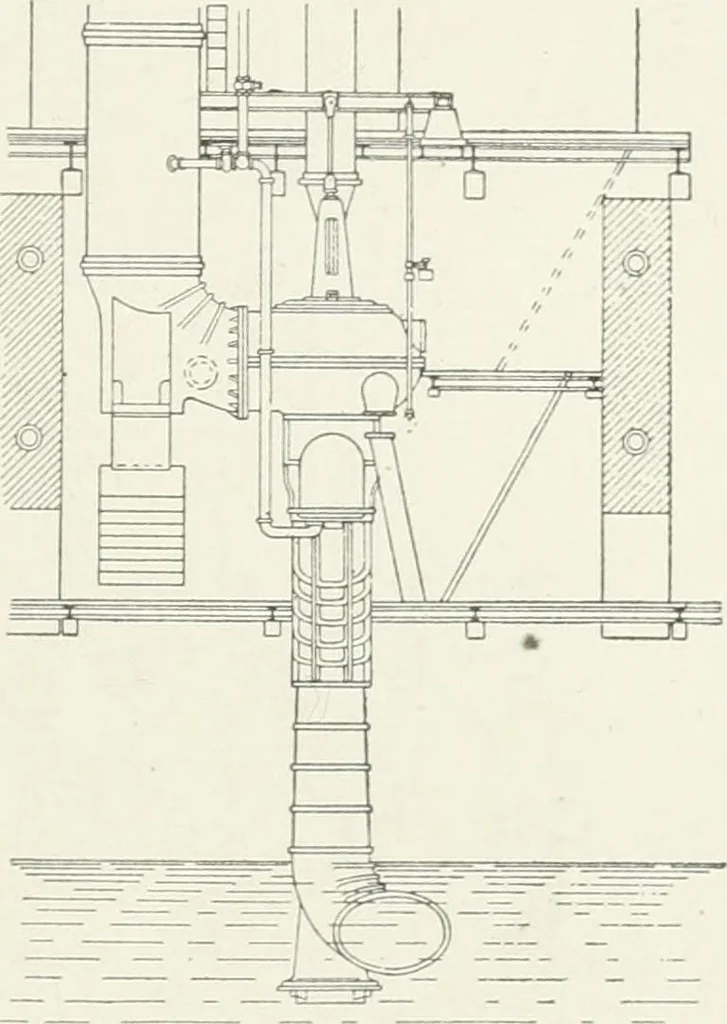

feet; but the total diameter of the turbine, which should includethe casing around the guide-wheel, is 12 feet. The guide-wheel ofthe Faesch & Piccard turbine has 36 buckets, and the turbine wheel32, of bronze cast solid with the rim. The outside diameter of thewheel of this turbine is about 7… … Fig. 178. Arrangement of Turbines andDraft-Tubes. Power-House No. 2, Ni-agara Fulls Power Company. 222 WATER-POWER DEVELOPMENT the cast-iron elbow at the foot of the penstock was carried on built-up girders, these in turn resting on brickwork walls 2 to 2\ feetthick; but the vibration to which they…
