Hydraulic motors, with related subjects, including centrifugal pumps, pipes, and open channels, designed as a text-book for engineering schools (1905)
Church, Irving Porter, 1851-1931 · New York : J. Wiley & Sons; [etc, ] · leaf 117

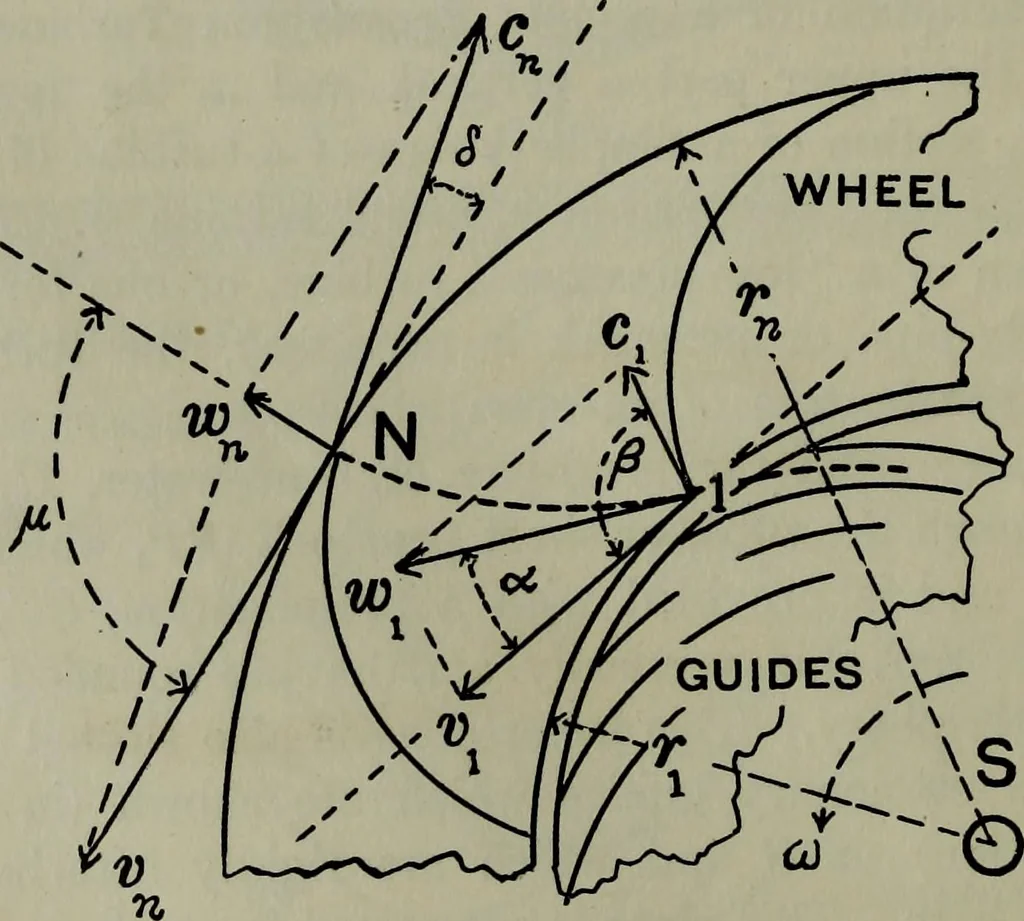

Fig. 47. … Fig. 48. 94 §63. FOURNEYRON TURBINE. 95 The turbine itself and its shaft are shown in vertical sec-tion by solid black shading; viz., EDKDE. EE and DD arethe two crowns, or horizontal rings, between which are insertedthe curved vertical vanes shown in outline in the horizontalsection at W. The…
Hydraulic machinery
