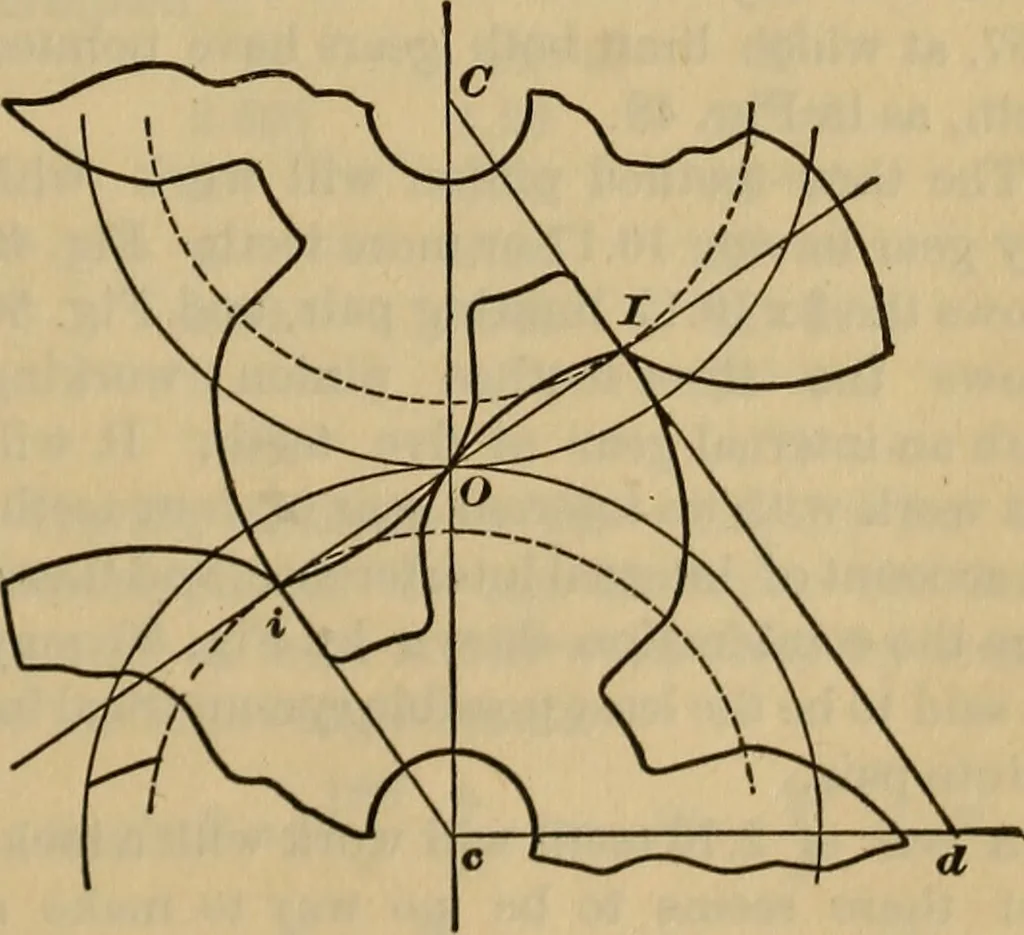

an internal gear of fiveteeth. The three-toothed pinion has no practicalaction. It has a mathematical action with in-*Tnal gears of 3.56 or less teeth, as shownby Fig. 47, but as its limit is less than four, itcannot work with any whole number. Thefigure shows the interference at a. The extreme… … 4.69 X 4.62 limit for equal teeth Fig. 45. 34 Limiting Involute Teeth. Fig, 46,
