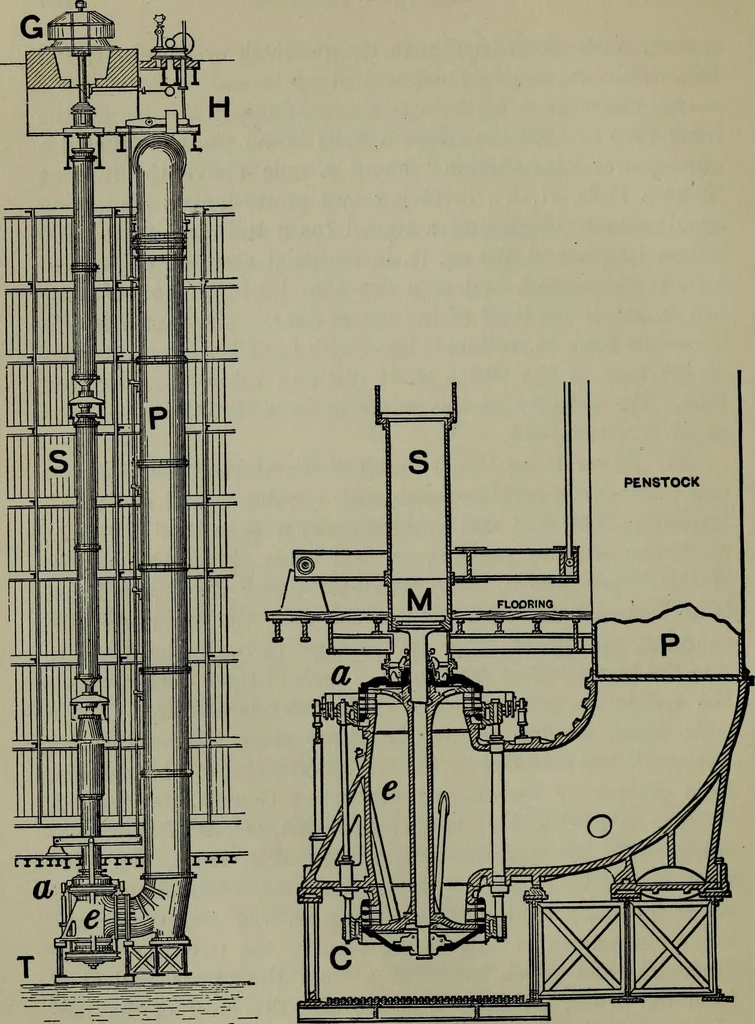

meter, conducting waterunder pressure to the wheel-casing, e. At the upper andlower extremities of this casing revolve the two wheels, thedischarge from which issues at a from the upper, and at Tfrom the lower, turbine. T shows also the level of the tail-water at the bottom of the wheel-pit. The… … Fig 52. Fig 53 108 § 74. FOURNEYRON TURBINES AT NIAGARA. 109 such that all the channelways are completely filled with water,so that it operates as a reaction turbine and not as an impulse,or tangential, wheel. S is the shaft, which for strength and lightness combinedis mainly hollow, consisting of…
