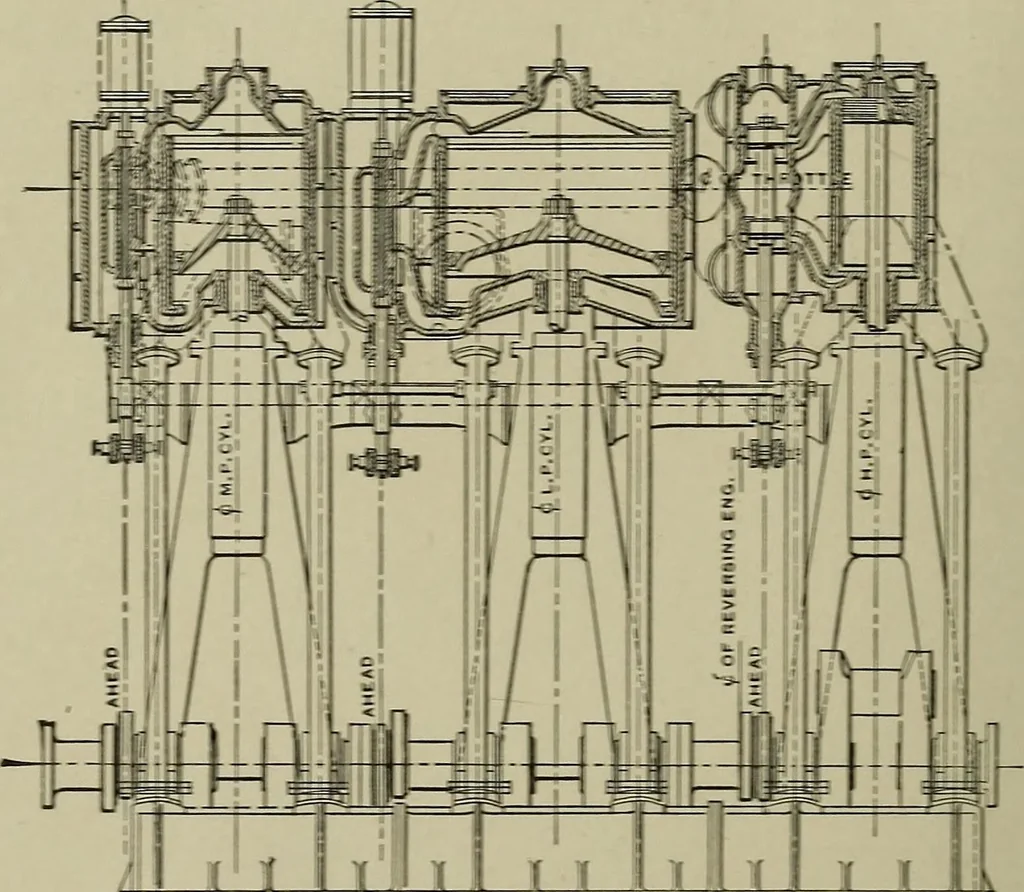

-6 STEAM POWER APPLIANCE: 149. TRIPLE EXPANSION MARINE ENGINE. Type cfsteamer Minnesota. Proportion of cylinders, 1. 5, 15 in area ; s:roke, … 1 I ( 48 inches; crank positions. 120°; high-pressure cylinder, 23 inchesdiameter; intermediate cylinder, 51 inches diameter; low-pressurecylinder, 89 inches diameter. 15c. COMPOUND CORLISS ENGINE. Atlas type, withdirect connected exhaust valves for both high- and low-pressure
