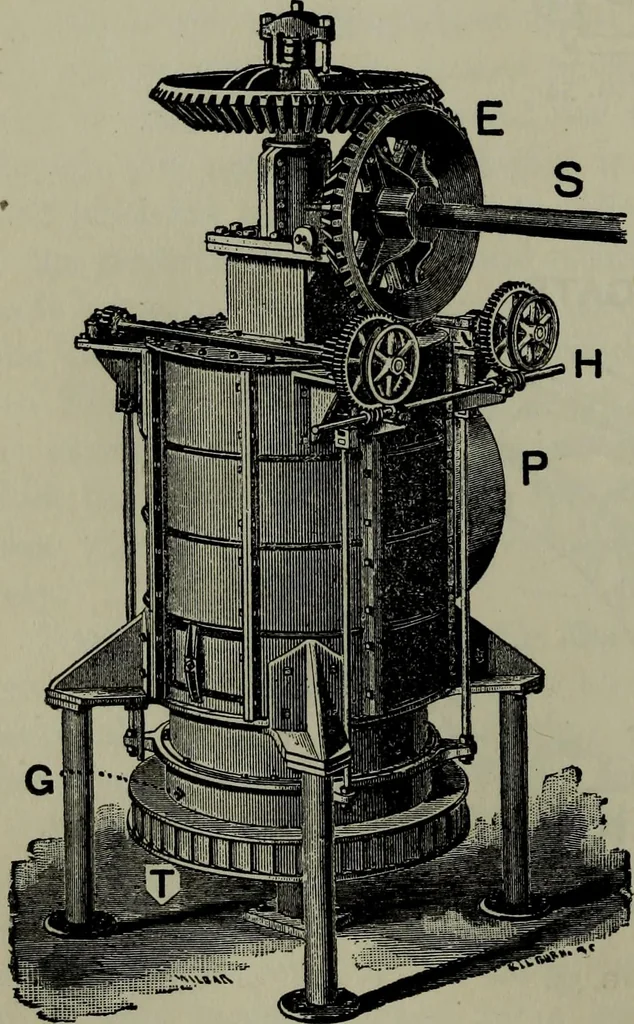

ylindrical gate is mov-able vertically between.Fig. 56 gives a view ofthe exterior of wheel-case, etc. The pen-stock is attached at P.The turning of thesmall shaft H, bymeans of interveningscrew-gearing, causesmotion of the four ver-tical rods to which thegate G is attached. AtT is seen the… … § 76. CLASSIFICATION OF TURBINES. 113 and gave an efficiency of practically 80 per cent, under a headof h = 19.6 ft.; developing 130.3 H.P. at its best speed of92.5 revs, per min.; and using Q = 58.6 cub. ft. of water persec. The diameter of the turbine was 5 ft. 8 in., and heightof wheel-passages…
