Elementary lessons in steam machinery and the marine steam engine, with a short description of the construction of a battleship (1893)
Langmaid, Joseph, Gaisford, H · London, New York : Macmillan · leaf 203

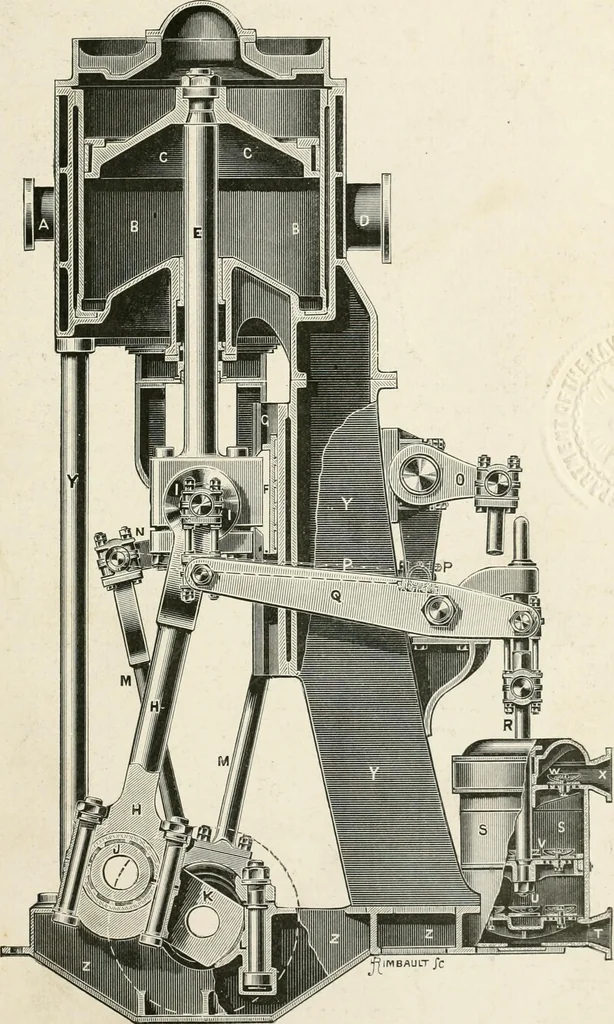

ut away toshow bolt holding cap in place. MM are the eccentric rods. N is the link of reversing gear. 0 is a lever on weigh shaft for reversing gear. P ,, rod connecting lower lever on weigh shaft with linkfor reversing the engines. Q air pump lever worked off piston rod crosshead by links. R is… … Fig. 82.—Sectional Elevation- of Engine.183 lesson xix ENGINES 185 U shows the foot valves at bottom of air pump. V is the air pwnp bucket with valves. W shows the delivery valves of air pump. X shows outlet from air pump ; a pipe connects this to feed tank.YY shows the engine framing on right, and…
Steam-engines · Marine engines
