Hydraulic motors, with related subjects, including centrifugal pumps, pipes, and open channels, designed as a text-book for engineering schools (1905)
Church, Irving Porter, 1851-1931 · New York : J. Wiley & Sons; [etc, ] · leaf 18

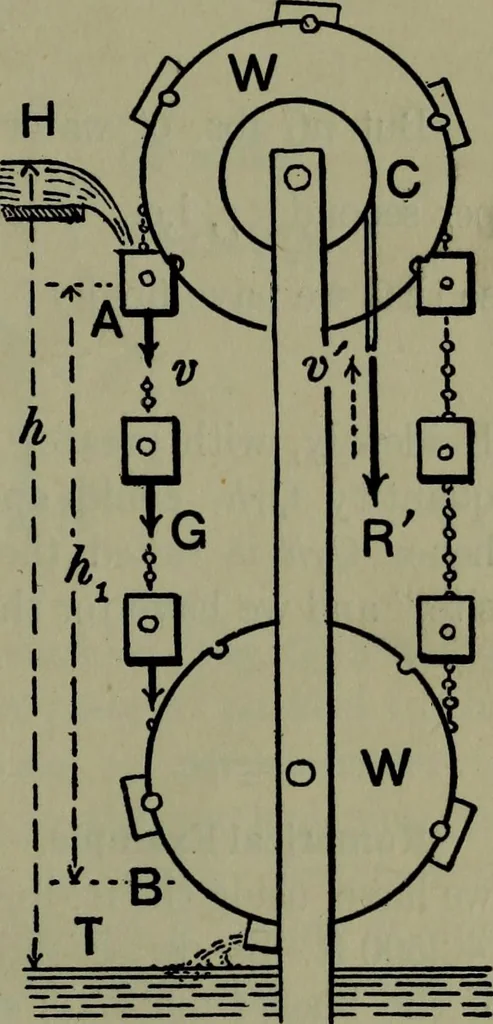

vof bucket, that of the rope being 1/.It will be seen from the figure thatthe height hi, from A to B, is a littleless than that, h, from head-watersurface H to tail-water surface at T.Since the motion of a bucket whileholding water is uniform and recti-linear, the resultant pressure of thewater… … Fia. 1. 4 HYDRAULIC MOTORS. § 4. apply the method of Work and Energy (see pp. 149-153, M. of E.), we note that there is a working force G actingon each of the n full buckets on the left; that R is the onlyresistance (axle frictions are here neglected); and that thereactions at the bearings are…
