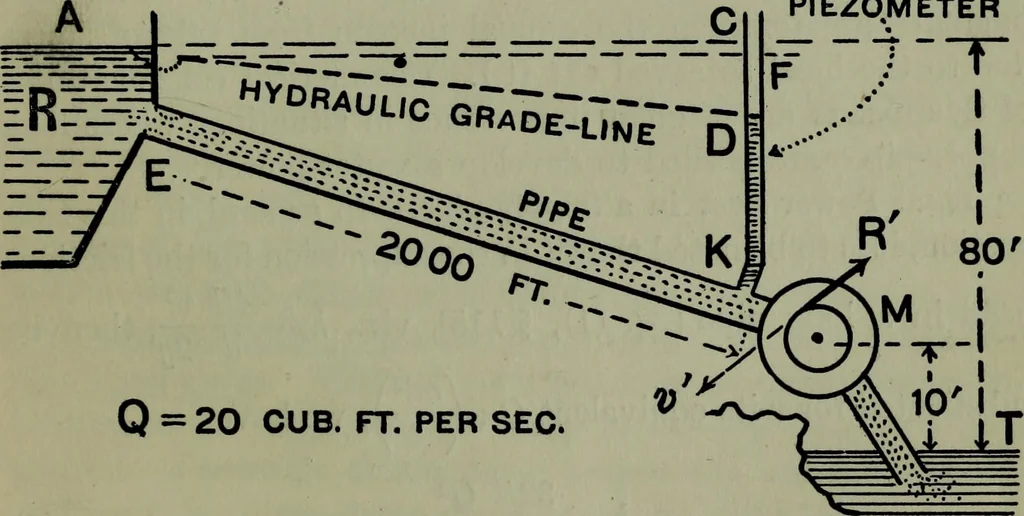

ltiplying this 11.6 by -£££ for riveted steel pipe (see § 115),we obtain 15.8 ft. as the friction-head from E to K. This15.8 ft. is the drop, FD, in the hydraulic grade-line, whileCF, = (v*+ 2g)(l +0.5), = L02 ft. Hence the open piezometerheight DK, at K (taking CK as 70 ft.), is 70 -(15.8 +… … Q =20 CUB. FT. PER SEC. Fig. 96. write for h the value 63.18+ (v2-f-2#); i.e., 63.86 ft., and not \80 ft.; since the 24-in. pipe is not a part of the turbine. Again, \referring to Fig. 45, the hi of that figure would be representedby DK + (v2+2g), i.e., by 53.86 ft., in the present case; andhn by…
