Model making; including workshop practice, design and construction of models, a practical treatise for the amateur and professional mechanic .. (1919)
Yates, Raymond F. (Raymond Francis), 1895- ed · New York, The Norman W. Henley Pub. Co. · leaf 274

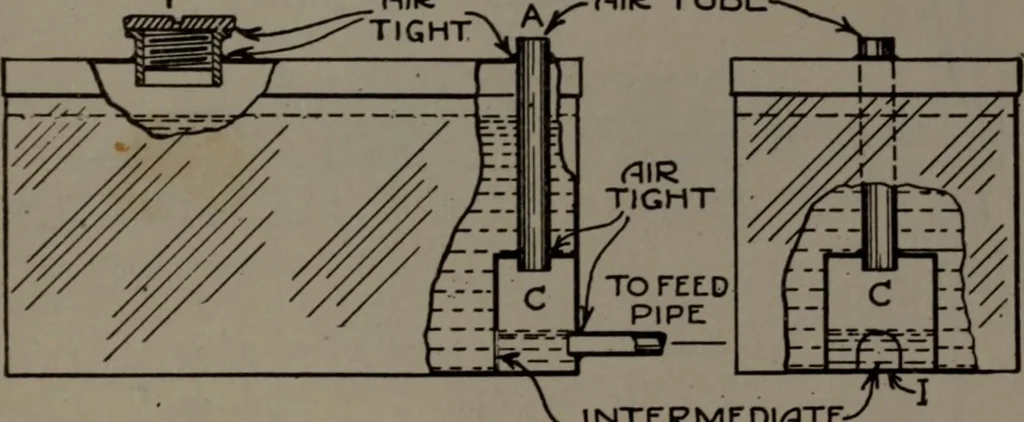

a polished brass cut-water put onto .the bow, avery pleasing model can be produced. The *Speedy engine, described in Chapter IX, andthe water tube boiler, which is described in ChapterXVII, Fig. 153, would make a splendid power plant forthis boat. The boiler can be fired by an alcohol trayburner,… … VjNTERMElDWTE-PflSSflGE Fig. 183—The fuel tank and automatic feed for the burner the bottom is a %6-inch brass tube with pin holes. Thisis covered with asbestos wool, as per Fig. 182. Thealcohol tank, which embodies the automatic feed device,is shown in Fig. 183 and can be built out of a cocoa…
