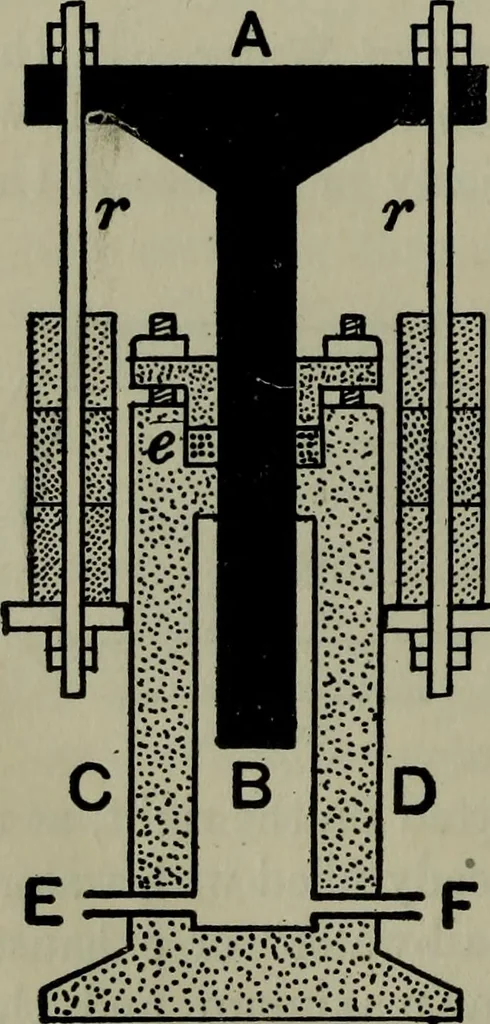

c accumulator. Fig. 119 shows(in a diagrammatic way) the vertical1 section of a simple design of hydraulicaccumulator. CD is a strong cylin-\-r ip drical vessel into whose upper endprotrudes a ram, or plunger, (i.e., pis-ton and rod in one,) AB. This plungeris loaded (with rings of cast iron,… … § 156. WATER-PRESSURE MACHINERY. 253 is compressed, by the screws holding down the cover of thegland, to prevent leakage of water around the ram (leatherpacking may also be used; see § 157). The pressure-water, when needed for occasional operationof machines, passes out through the small pipe F and…
