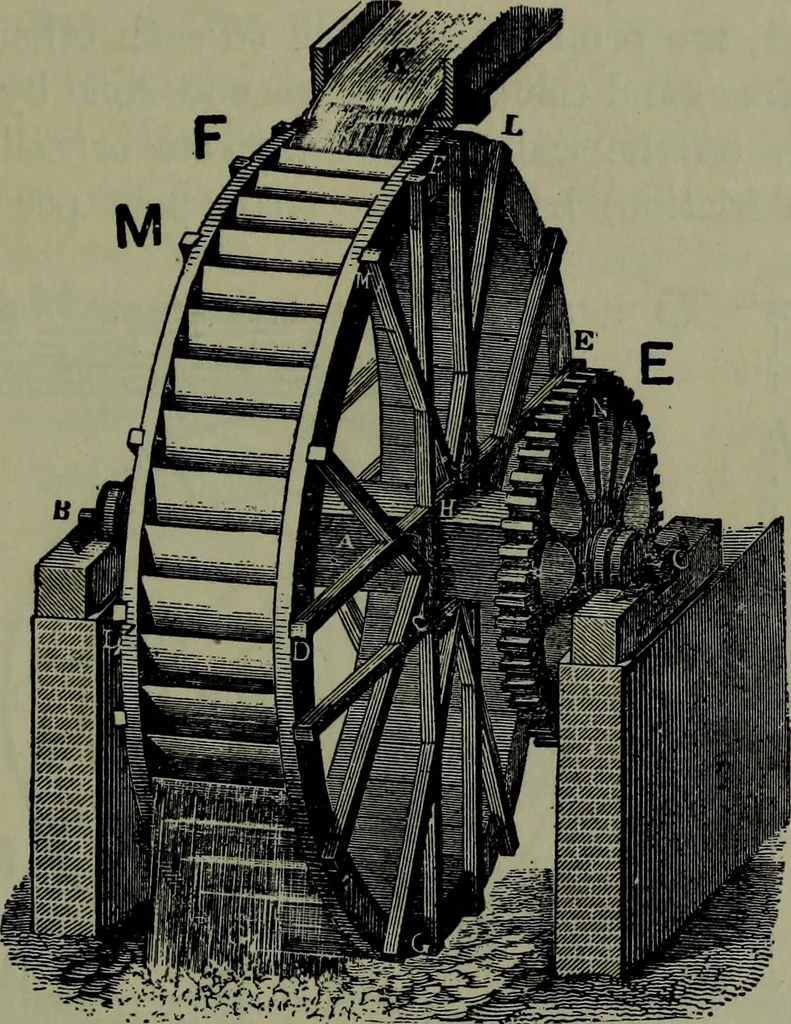

tangent to the tail-water; or, if the level of the latteris variable, high enough to avoid contact. In Fig. 6 H isthe axle, B and C its gudgeons; DMF, DMF, the crowns,or shroudings, made in 8 to 16 segments and from 3 to 5 in.thick, and fastened to each other by cross tie-bolts which 22 §15. THEORY… … Fig. 6. 15. Theory of the Overshot Wheel.—In Fig. 6a we have avertical section of a wheel of this kind, revolving counter-clockwise with uniform motion and overcoming the resistanceR at the rim of the gear-wheel A. The (uniform) velocityof the buckets should not exceed 5 ft. per second for…
