Hydraulic motors, with related subjects, including centrifugal pumps, pipes, and open channels, designed as a text-book for engineering schools (1905)
Church, Irving Porter, 1851-1931 · New York : J. Wiley & Sons; [etc, ] · leaf 58

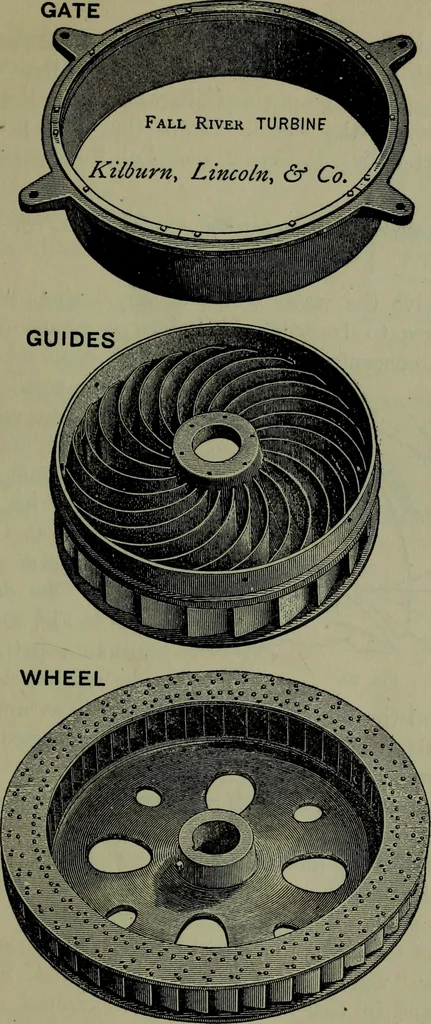

Fig. 19. See also Fig. 56 on p. 112. Each vertical partition (or blade, float, or vane)between the wheel-channels experiences more pressure fromthe water on its concave than on its convex side, and the sumof the moments of all these excess forces, about the wheelaxis, called I (Pa), may be regarded… … Fig. 17 (Gate,) 18 (Guides), and 19 (Wheel or Turbine). 43 44 HYDRAULIC MOTORS. §34. of this couple to have a value P0 lbs., with an arm of do ft.;then I(Pa)=Po . a0. In a unit of time each of the two forcesPo works through a distance toao + 2, where to is the uniformangular velocity of the wheel.…
