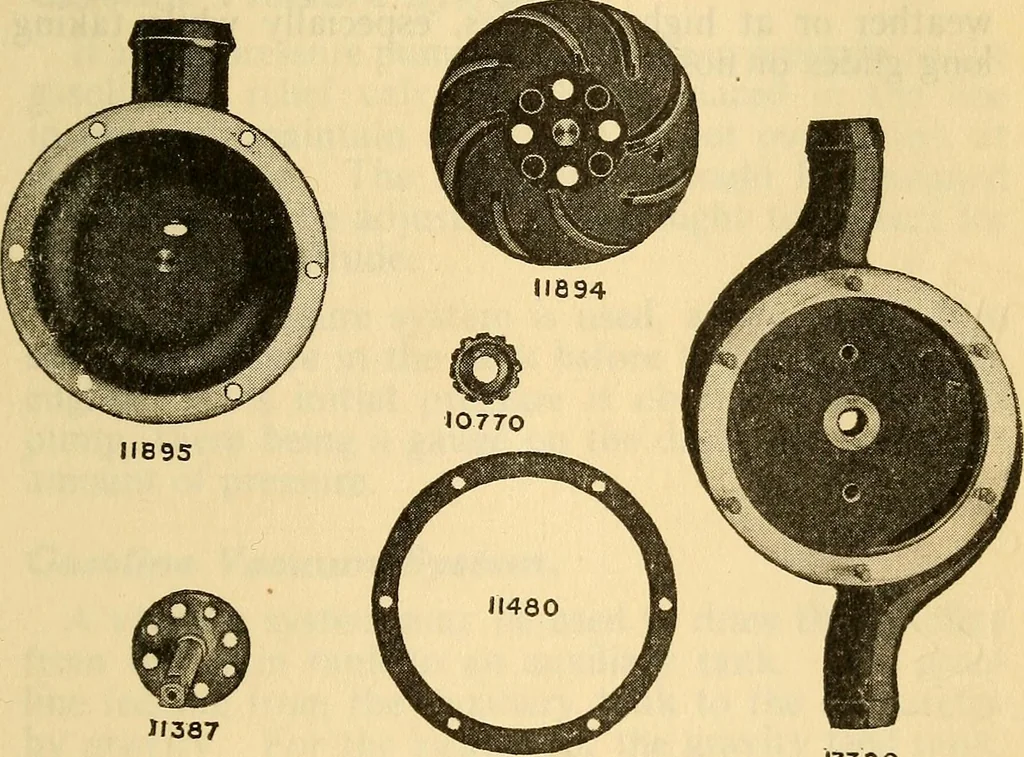

ES PART VIIWATER CIRCULATING SYSTEMKind of Water Pump. Water circulation is provided for by a centrifugalpump with two discharge outlets mounted directlybelow the oil pumps and driven from its shaft at 1.20engine speed. A rubber hose runs from each outlet toeach of the cylinder blocks, the water… … JI387 13329 Plate 25Water pump disassembled. 65 HISPANO— SUIZA Water Temperatures. The desirable temperature of the water outletis 43° C or 110° F and the inlet water 10° C or 20° Flower to obtain the best engine efficiency. It maysometimes happen that for short durations or in a veryhot climate…
