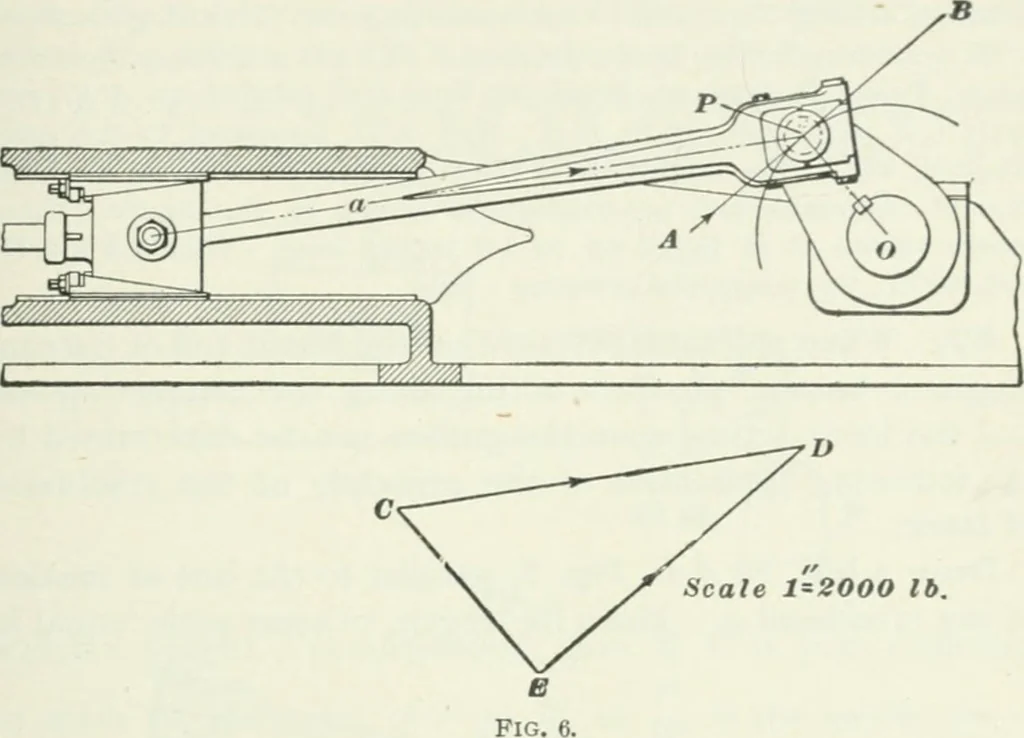

An illustration from I.C.S. reference library : a series of textbooks prepared for the students of the International Correspondence Schools and containing in permanent form the instruction papers examination questions, and keys used in their various courses, 1904, leaf 208 — he center ofthe cylinder and crank-shaft, a position that is expressed bysaying the engine is on the center, the pressure of theconnecting-rod on the crankpin acts directly against the §4 PRINCIPLES OF MECHANICS. 31 bearings of the shaft and there is no turning effect onthe pin. After the pin… … Scale 1-2000 lb. exerts a pressure on the bearings of the shaft; the othercomponent acts along the line y^ ^ at right angles to thecenter line PO and tangent to the circle described by thecrankpin. This is the force that tends to turn the crankand is called the tangential pressure on the…
