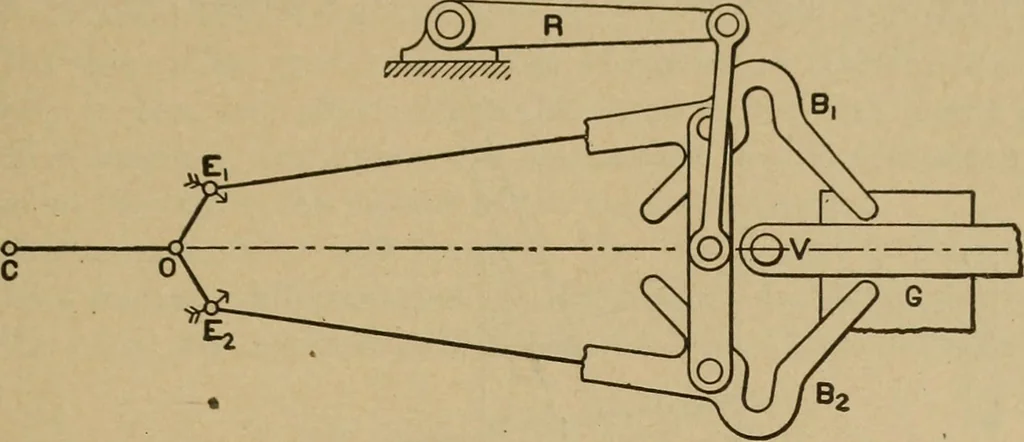

aking this transfer isthat shown in Fig. 241, where by moving the lever R either hook, Bi orB2, can be made to engage the pin at V. This crude arrangementpreceded the link motion, and was used on hoisting engines: it has, ofcourse, been entirely superseded. § 40 (a)l REVERSING VALVE GEARS. 383 The… … Fig. 241. — The Gab Motion. reversing the engine, in making possible a regulation and variation ofthe steam distribution very similar to that effected by the movableeccentric of the shaft governor. (6) Form of the Link Motion. — This valve gear is used onlocomotives, marine engines, hoisting…
