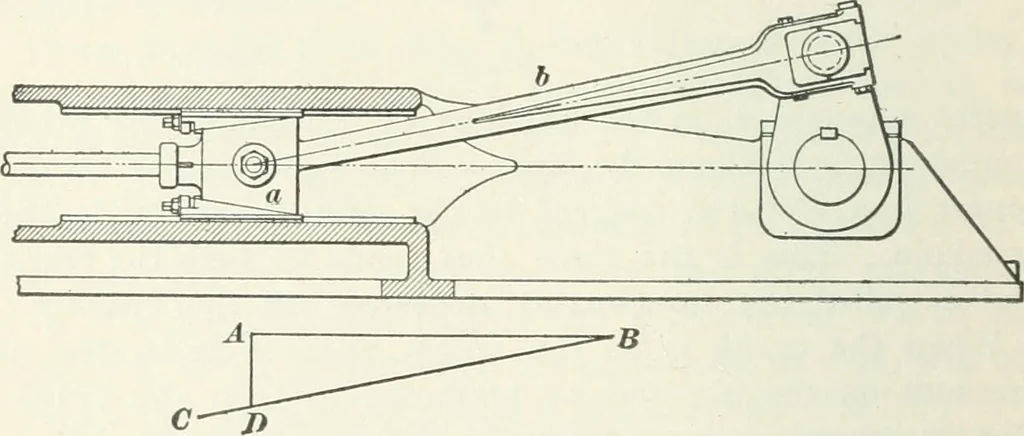

ing-rod shown in the figure. Uponmeasurement, it is found to be 1.3 inches long. Then 1.3 X 2,000= 2,600 lb., the tangential pressure. Ans. 87. When the total pressure on the piston rod of a steamengine is known, the force acting along the connecting-rodand the force acting upon the guides can be… … FIG. 7. magnitude to the force impelling the piston. From oneextremity oi A B draw a line B C parallel to the center lineof the connecting-rod b. From the other extremity oi A Bdraw a line at a right angle to A B, producing it until itintersects the line B Cdit D. Then, B D represents the…
