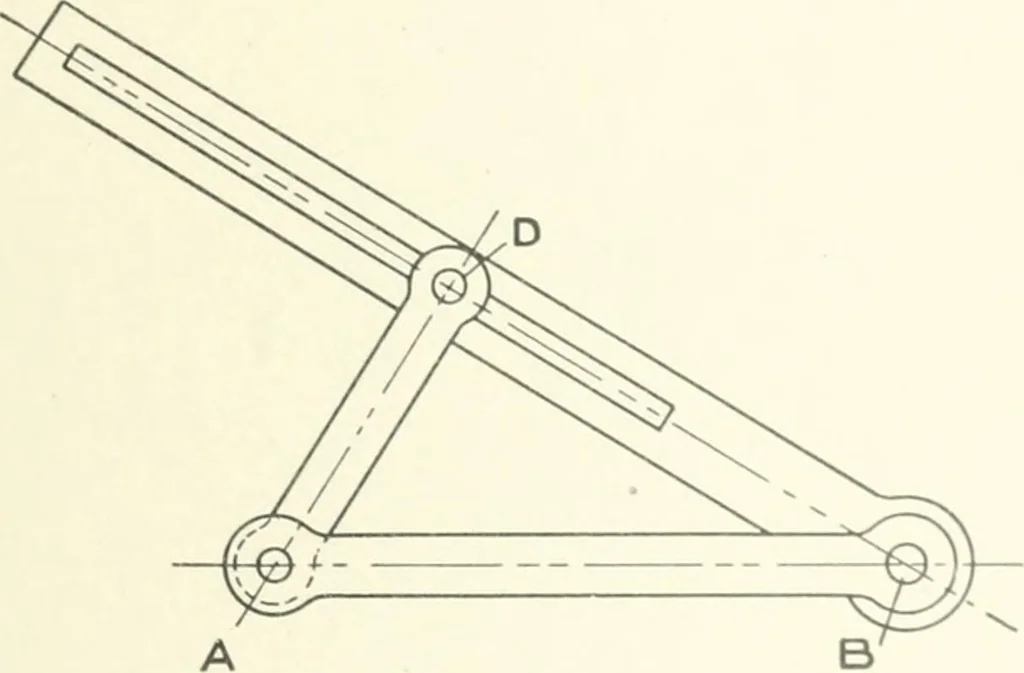

the return motion more rapid. Take forexample the shapcr; as the tool when movincr forward is cuttintrmetal, it should go slowly and steadily, but after the cut is madeit iS defjirable to get the tool back ready for its next stroke as(|uickly as possible. Many different devices are used to… … Fif?. 55. with uniform speed), BD is the slotted crank and to some part of1>D a liidv or some other piece is connected by means of which thetool is driven. Two distinct mechanisms are formed, dependingupon the relative lengths of the links. If the proportions are suchthat a circle drawn around…
