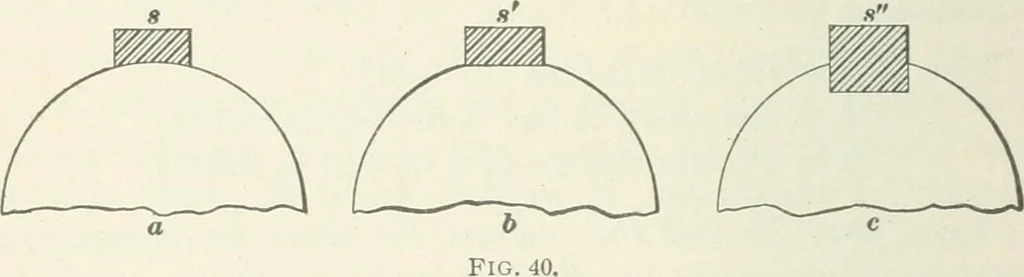

ing mixed upby the multiplicity of marks sure to be found after yearsof service. 87. Keys for fastening pulleys to shafts in order to causethem to rotate together belong usually to one of the threeclasses shown in Fig. 40. The one shown at a is a concavekey that is hollowed out to fit the shaft. As… … the radius of the shaft. The flat key is shown in Fig. 40 at b,a flat surface is cut on the shaft, and, consequently, the keyis more effective than the concave key, as far as slippingunder a rotative strain is concerned. The sunk key shown inFig. 40 at c is the most effective, since it is…
