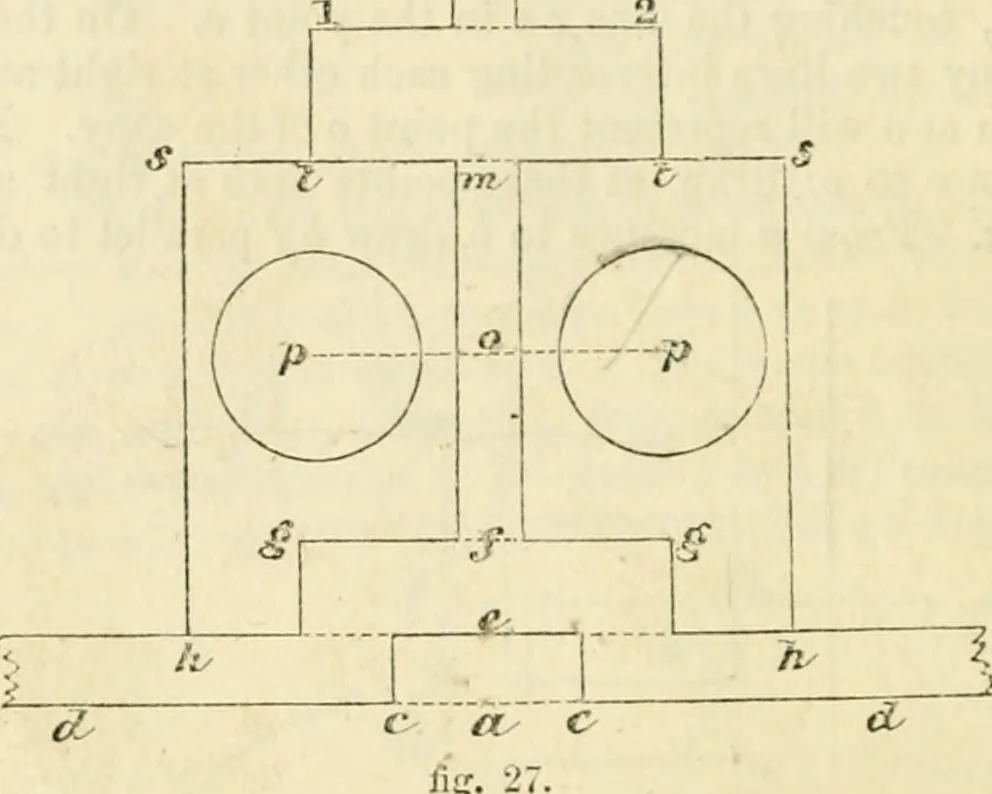

across a, the line g g across f, tt across m. Bytrial find the centres of the circles p, p, join them by a line pop. On theboard draw any line a b, representing the centre line of the \vall/«2, and atright angles to it another d d. From a measure to e and c, c, from thesedraw lines forming a… … through this parallel to dd; from o measure to pp; these points are thecentres of the circles. From a measure to m ; draw a line as before, andmeasure to 5, s. From m measure to t, t, and draw lines to 1, 2 ; put in thethickness of the wall mf. Example 28. To draw the hulls ei/e in fig. 28. Bisect…
