The inventions : researches and writing of Nikola Tesla, with special reference to his work in polyphase currents and high potential lighting (1894)

Martin, Thomas Commerford, 1856-1924, Tesla, Nikola, 1856-1943 · New York : The Electrical Engineer · leaf 454

An illustration from The inventions : researches and writing of Nikola Tesla, with special reference to his work in polyphase currents and high potential lighting, 1894, leaf 454

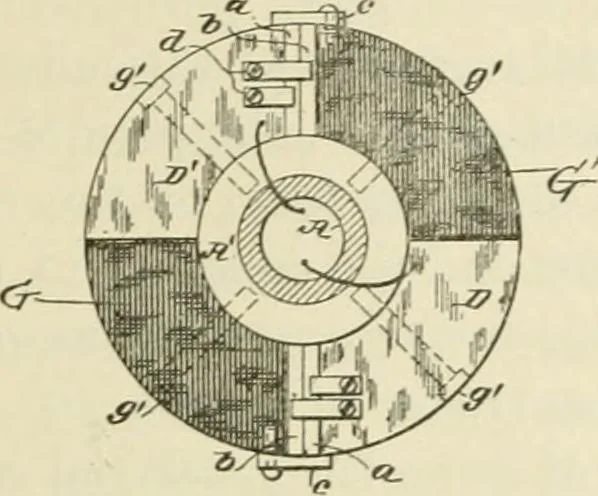

view of theinner or bearing face of the collector. Fig. 248 is an end viewfrom the armature side of a modified form of commutAtor. Figs. ANTL8PAKKIN0 BRUSHES AND COMMUTATORS. 435 249 and 250 are views of details of Fig. 248. Fig. 251 is a longi-tudinal central section of another modification, and… … Fig. 248 Fig. 249. Fig. 250. The commutator proper is in the form of a disc which is madeup of four segments d d g g, similar to those shown in Fig. 248.Two of these segments, as d d, are of metal and are in electricalconnection with the ends of the coils on the armature. Theother two segments are…
