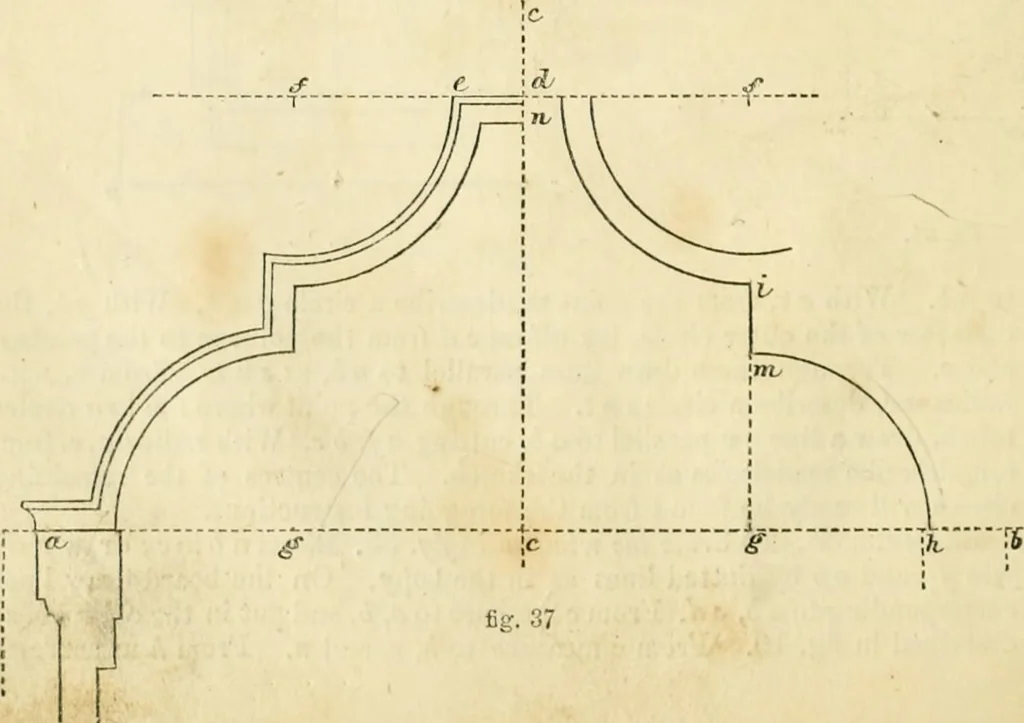

EXGINEERIXG, ASD ME( HAXICIL DRA\VIXG-B30K. 27 measure to d, and draw/c//parallel to a b. From d measure to ee and//; from c measure to g, and from g, with g h, describe the quadrant h m.From m draw mi parallel to cd: from/, with radius fn, describe the arcmeeting the line i. Finish as in tlie part…
