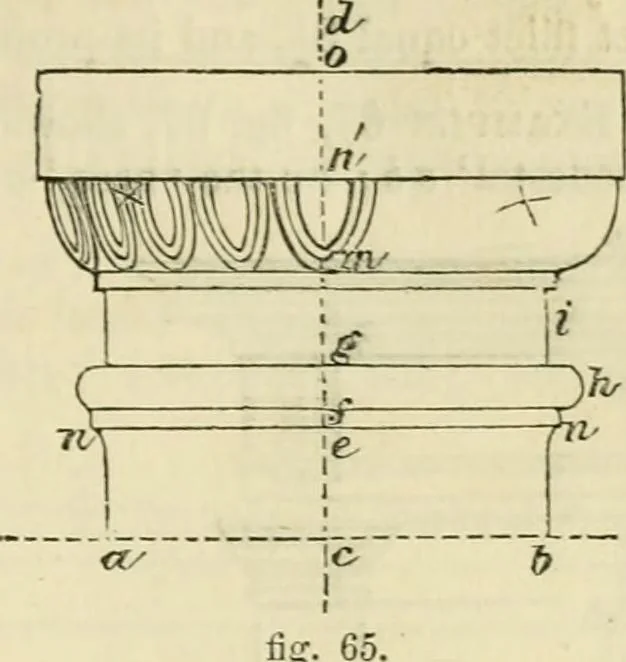

parts, or 1 diameter.These are the projections; the heights areas follows :—The fillet ef equal 2 parts;fg equal 4 ; gm equal 8i ; the fillet abovethis 1| ; the quarter-roundm n equal ]0;the abacus or plinth li o equal 10. Thequarter-round begins at 1 division of thescale from s. ExAiiPLE 66, fig.…
