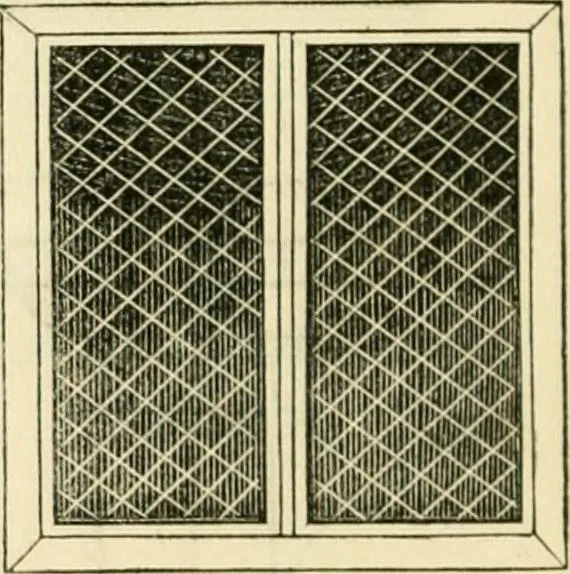

xamples of various architectural forms anddecorations, useful to impart to the pupil a correct general idea of themethod of proportioning doors, windows, &c.; and also serving as copiesby which he may test his proficiency, and enable him to acquire thatfacility so requisite for the… … tig-. 108. lig. lUit. Example 107, fig. 109, is the elevation of a rustic window, withlozenge-shaped panes of glass. For the method of laying this out, seeExample 5, fig. 5. Example 108, fig. 110, is an elevation of a three-light (Venetian)window, in the Italian style, drawn to a scale of…
